In Stock Hot Product
6686367

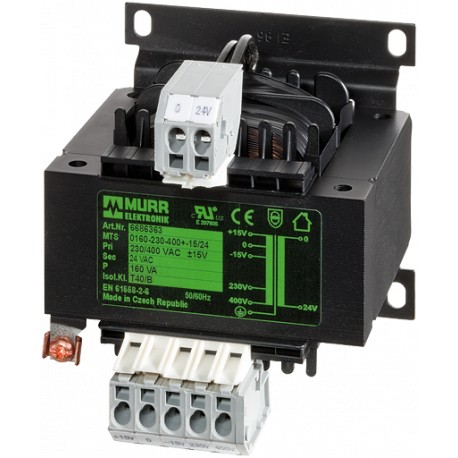

6686367 MURRELEKTRONIK MTS single-phase control and isolation transformer P: 63VA IN: 230/400VAC +/- 15VAC O..
$0.00USD
3995 in stock
Key Specifications
EAN:4048879065962
eClass:27031302
Frequency:50...60 Hz
Standards:EN 61558-1, EN 61558-2-4, EN 62041 category 0
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879065962 |
| eClass | 27031302 |
| Frequency | 50...60 Hz |
| Standards | EN 61558-1, EN 61558-2-4, EN 62041 category 0 |
| Drill hole Ø | 4.8×8.4 mm |
| Input current | 0.32 A (230 V AC); 0.18 A (400 V AC) |
| Input voltage | 230/400 ±15 V AC |
| Output rating | 63 VA |
| Inrush current | 2 A (230 V AC); 1.15 A (400 V AC) |
| Output voltage | 230 V AC |
| Packaging unit | 1 |
| Mounting method | Long-hole mounting or DIN-rail mountable TH35 (EN 60715) |
| Temperature range | -20...+40 °C (storage temperature -40...+80 °C) |
| country of origin | CZ |
| Dimensions H×W×D | 79×78×93 mm |
| Short-circuit current | 2.64 A (230 V AC); 1.52 A (400 V AC) |
| customs tariff number | 85043180 |
| Fixing centers a×b×c | 56×56×4.8 mm |
| Test isolation voltage | 4 kV (prim./sec.) |
Product Description
MTS 1-PHASE CONTROL AND ISOLATION TRANSFORMERP: 63VA IN: 230/400VAC +/- 15VAC OUT: 230VAC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
