6686131

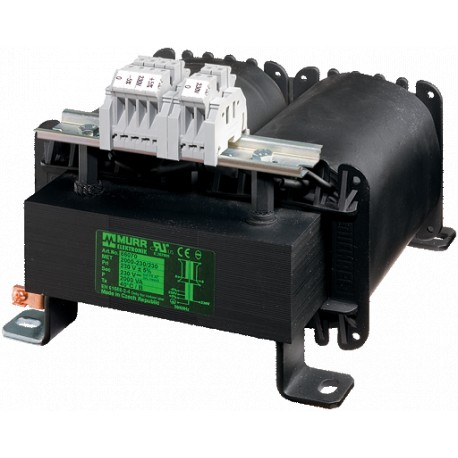

6686131 MURRELEKTRONIK MET single-phase control and isolation transformer P: 5000VA IN: 400VAC+/- 5% OUT: 23..
$0.00USD
4737 in stock
Key Specifications
EAN:4048879066259
eClass:27031302
Art.No.::6686131
Frequency:50...60 Hz
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879066259 |
| eClass | 27031302 |
| Art.No.: | 6686131 |
| Frequency | 50...60 Hz |
| Standards | EN 61558-1, EN 61558-2-4, EN 62041 category 0 |
| Drill hole Ø | 9×14 mm |
| Input current | 12.86 A (400 V AC) |
| Input voltage | 400 V AC ±5% |
| Output rating | 5 000 VA |
| Inrush current | 254.2 A (400 V AC) |
| Output voltage | 230 V AC |
| Packaging unit | 1 |
| Mounting method | Long-hole mounting |
| Temperature range | -20...+40 °C (storage temperature -40...+80 °C) |
| country of origin | CZ |
| Alternative product: | Product ComparisonSingle-phase - Control and Isolation Transformers5 000 VASpring clamp terminalsIsolation class T 40/BInputInput voltage400 V AC ±5%Input current12.86 A (400 V AC)Short-circuit current700.3 A (400 V AC)Inrush current254.2 A (400 V AC)Frequency50...60 HzGeneral dataStandardsEN 61558-1, EN 61558-2-4, EN 62041 category 0Test isolation voltage4 kV (prim./sec.)Dimensions H × W × D225×198×250 mmFixing centers a × b × c200×174×9 mmDrill hole Ø9×14 mmMounting methodLong-hole mountingTemperature range-20...+40 °C (storage temperature -40...+80 °C)OutputOutput voltage230 V ACOutput rating5 000 VACommercial datacountry of originCZcustoms tariff number85043200EAN4048879066259eClass27031302Packaging unit1 |
| Short-circuit current | 700.3 A (400 V AC) |
| customs tariff number | 85043200 |
| Dimensions H × W × D | 225×198×250 mm |
| Test isolation voltage | 4 kV (prim./sec.) |
| Fixing centers a × b × c | 200×174×9 mm |
Product Description
MET 1-PHASE CONTROL AND ISOLATION TRANSFORMERP: 5000VA IN: 400VAC+/- 5% OUT: 230VAC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
