668606

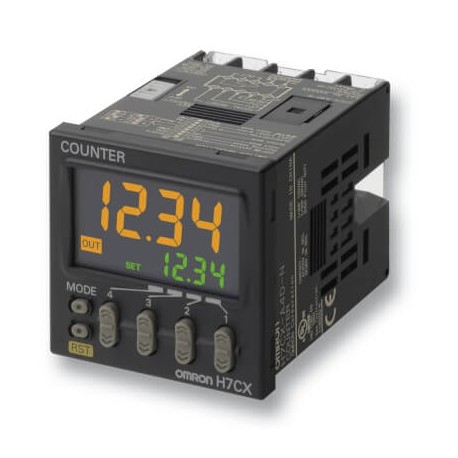

H7CX-A11SD1-N 668606 OMRON SPDT Basic 6 dig. Salt. Trt 12-24vdc/24vac 11pin
$0.00USD
4515 in stock
Key Specifications
Size:1/16 DIN (48 x 48 mm)
Type:Pre-set counter
Depth:63.7 mm
Speed:10000 Hz
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Size | 1/16 DIN (48 x 48 mm) |
| Type | Pre-set counter |
| Depth | 63.7 mm |
| Speed | 10000 Hz |
| Width | 48 mm |
| Height | 48 mm |
| Inputs | DC voltage, No-voltage |
| Terminal | Plug-in |
| Body color | Black |
| Output type | Transistor |
| Relay output | 0 |
| LCD backlight | With backlight |
| Counting range | -99999 - 999999 |
| Number of digits | 6 |
| Installation type | Socket |
| Supply voltage AC | 20.4-26.4 V |
| Supply voltage DC | 12-24 V |
| Transistor output | 1 |
| Counting functions | 1-stage counter, 1-stage counter with total counter |
Product Description
Counter, plug-in, 11-pin, 1/16DIN (48 x 48mm), IP66, 6 preset & 6 actual count digits, multifunction: 1-stage & total, transistor output, 12-24 VDC/24 VAC supply, 12 VDC aux supply
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
