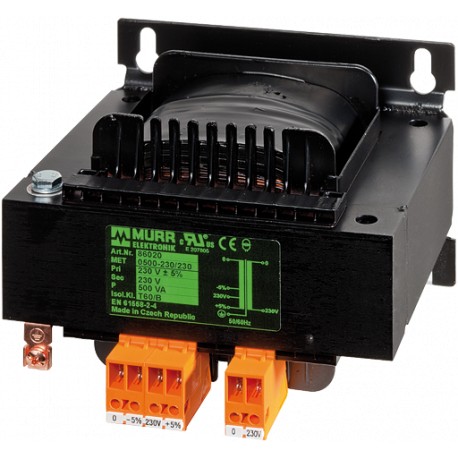

6686050 MURRELEKTRONIK MET single-phase control and isolation transformer P: 1000VA IN: 230VAC+/- 5% OUT: 23..
$0.00USD
4361 in stock
Key Specifications
EAN:4048879066396
eClass:27031302
Frequency:50...60 Hz
Standards:EN 61558-1, EN 61558-2-4, EN 62041 category 0
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879066396 |
| eClass | 27031302 |
| Frequency | 50...60 Hz |
| Standards | EN 61558-1, EN 61558-2-4, EN 62041 category 0 |
| Drill hole Ø | 7×11 mm |
| Input current | 4.64 A (230 V AC) |
| Input voltage | 230 V AC ±5% |
| Output rating | 1000 VA |
| Inrush current | 110 A (230 V AC) |
| Output voltage | 230 V AC |
| Packaging unit | 1 |
| Mounting method | Key-hole mounting |
| Temperature range | -20...+60 °C (storage temperature -40...+80 °C) |
| country of origin | CZ |
| Dimensions H×W×D | 138×174×160 mm |
| Short-circuit current | 138 A (230 V AC) |
| customs tariff number | 85043180 |
| Fixing centers a×b×c | 111.5×135×7 mm |
| Test isolation voltage | 4 kV (prim./sec.) |
Product Description
MET 1-PHASE CONTROL AND ISOLATION TRANSFORMERP: 1000VA IN: 230VAC+/- 5% OUT: 230VAC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
