In Stock Hot Product
6686045

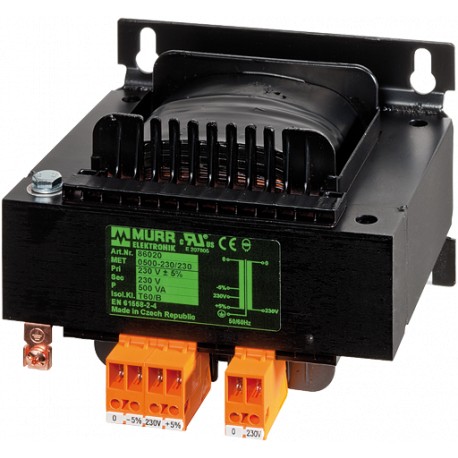

6686045 MURRELEKTRONIK MET single-phase control and isolation transformer P: 800VA IN: 240-415VAC OUT: 110-1..
$0.00USD
4264 in stock
Key Specifications
EAN:4048879066402
eClass:27031302
Frequency:50...60 Hz
Standards:EN 61558-1, EN 61558-2-4, EN 62041 category 0
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879066402 |
| eClass | 27031302 |
| Frequency | 50...60 Hz |
| Standards | EN 61558-1, EN 61558-2-4, EN 62041 category 0 |
| Drill hole Ø | 7×11 mm |
| Input current | 3.75 A (240 V AC); 2.15 A (415 V AC) |
| Input voltage | 240/415 V AC |
| Output rating | 800 VA |
| Inrush current | 92.8 A (240 V AC); 49.12 A (415 V AC) |
| Output voltage | 110/240 V AC |
| Packaging unit | 1 |
| Mounting method | Key-hole mounting |
| Temperature range | -20...+60 °C (storage temperature -40...+80 °C) |
| country of origin | CZ |
| Dimensions H×W×D | 118×174×148 mm |
| Short-circuit current | 87.8 A (240 V AC); 50.4 A (415 V AC) |
| customs tariff number | 85043180 |
| Fixing centers a×b×c | 92×135×7 mm |
| Test isolation voltage | 4 kV (prim./sec.) |
Product Description
MET 1-PHASE CONTROL AND ISOLATION TRANSFORMERP: 800VA IN: 240-415VAC OUT: 110-110-20VAC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
