In Stock Hot Product
668601

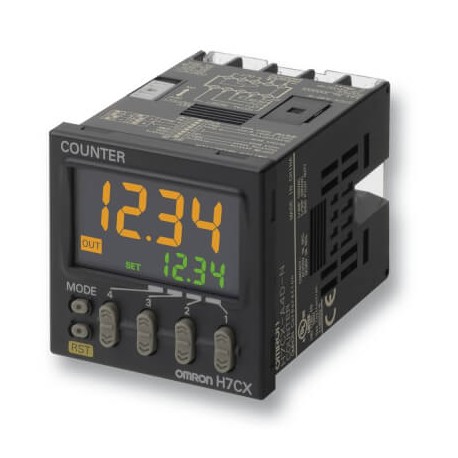

H7CX-A4SD-N 668601 OMRON SPST Standard 4 dig. Salt. Trans. 12-24VDC/24VAC
$0.00USD
3720 in stock
Key Specifications
Size:1/16 DIN (48 x 48 mm)
Type:Pre-set counter
Depth:59 mm
Speed:10000 Hz
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Size | 1/16 DIN (48 x 48 mm) |
| Type | Pre-set counter |
| Depth | 59 mm |
| Speed | 10000 Hz |
| Width | 48 mm |
| Height | 48 mm |
| Inputs | DC voltage, No-voltage |
| Terminal | Screw |
| Body color | Black |
| Output type | Transistor |
| Relay output | 0 |
| LCD backlight | With backlight |
| Counting range | -999 - 9999 |
| Number of digits | 4 |
| Installation type | On-panel |
| Supply voltage DC | 12-24 V |
| Transistor output | 1 |
| Counting functions | 1-stage counter, 1-stage counter with total counter |
Product Description
Counter, 1/16DIN (48 x 48mm), IP66, 4 preset & 4 actual count digits, multifunction:1-stage & total, transistor output,12-24 VDC/24 VAC supply, includes colour change display function
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
