In Stock Hot Product
6654102

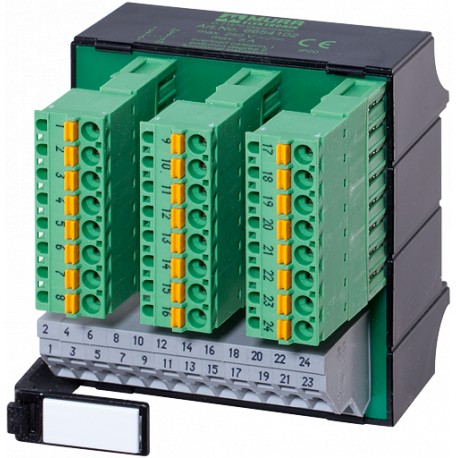

6654102 MURRELEKTRONIK LUGS 24 FOR SIGNAL TRANSFER 250V/8 A
$0.00USD
3714 in stock
Key Specifications
EAN:4048879324137
eClass:27379201
Art.No.::6654102
Connection:Spring clamp plug-in terminals: max. 2.5 mm² (AWG 14)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879324137 |
| eClass | 27379201 |
| Art.No.: | 6654102 |
| Connection | Spring clamp plug-in terminals: max. 2.5 mm² (AWG 14) |
| Material group | EN 50178 over voltage, category I |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable (EN 60715) |
| Operating voltage | 250 V AC |
| Temperature range | -20...+60 °C |
| country of origin | CZ |
| Alternative product: | Product Comparison24-polePush-In spring clamp terminalsTechnical DataOperating voltage250 V ACOperating current per bit8 AMaterial groupEN 50178 over voltage, category IGeneral dataConnectionSpring clamp plug-in terminals: max. 2.5 mm² (AWG 14)Mounting methodDIN-rail mountable (EN 60715)Dimensions H × W × D75×70×75 mmTemperature range-20...+60 °CCommercial datacountry of originCZcustoms tariff number85369010EAN4048879324137eClass27379201Packaging unit1 |
| customs tariff number | 85369010 |
| Dimensions H × W × D | 75×70×75 mm |
| Operating current per bit | 8 A |
Product Description
LUGS 24FOR SIGNAL TRANSFER 250V/8 AMounting rail/pluggable spring clamps
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
