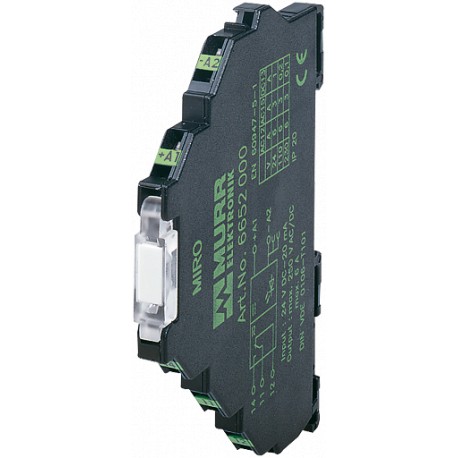

6652561 MURRELEKTRONIK MIRO 6.2MM OPTO-COUPLER MODULE WITH ISOLATION LINK
$0.00USD
3801 in stock
Key Specifications
EAN:4048879021685
eClass:27371601
Housing:Black plastic, flame retardant
LED display:LED (yellow)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879021685 |
| eClass | 27371601 |
| Housing | Black plastic, flame retardant |
| LED display | LED (yellow) |
| Packaging unit | 1 |
| Control current | 7 mA |
| Mounting method | DIN-rail mountable (EN 60715) |
| Voltage range ON | 10...53 V DC |
| Switching voltage | 24...250 V AC |
| Temperature range | -20...+60 °C |
| Voltage range OFF | 0...5 V DC |
| country of origin | CZ |
| Dimensions H×W×D | 78×6.2×70 mm |
| Switching frequency | max. 20/1 Hz (resist./ind.) |
| Switching time ON/OFF | 10/10 ms |
| customs tariff number | 85414090 |
| Test isolation voltage | 2.5 kV |
| Switching current per output | 2 mA...0.5 A |
| Leakage current (output is open) | max. 0.3 mA |
| Saturation voltage (across output) | max. 1.5 V AC |
Product Description
MIRO 6.2MM OPTO-COUPLER MODULE WITH ISOLATION LINKIN: 53 VDC - OUT: 250 VAC / 0,5A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
