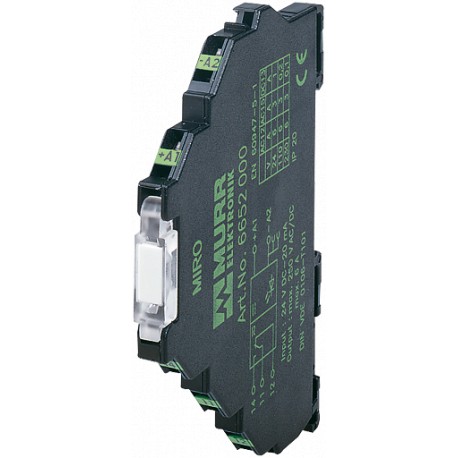

6652503 MURRELEKTRONIK MIRO TR 24VDC FK 5P OPTO-COUPLER MODULE
$0.00USD
4802 in stock
Key Specifications
EAN:4048879021852
eClass:27371601
Housing:Black plastic, flame retardant
LED display:LED (yellow)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879021852 |
| eClass | 27371601 |
| Housing | Black plastic, flame retardant |
| LED display | LED (yellow) |
| Packaging unit | 1 |
| Control current | 6 mA |
| Mounting method | DIN-rail mountable (EN 60715) |
| Voltage range ON | 10...48 V DC |
| Switching voltage | 10...35 V DC |
| Temperature range | -20...+60 °C |
| Voltage range OFF | 0...5 V DC |
| country of origin | CZ |
| Dimensions H×W×D | 91×6.2×70 mm |
| Switching frequency | max. 1 kHz |
| Switching time ON/OFF | 90/120 µs |
| customs tariff number | 85414090 |
| Test isolation voltage | 3.75 kV |
| Switching current per output | 1 mA...2 A (short-circuit protected) |
| Leakage current (output is open) | max. 0.1 mA |
| Saturation voltage (across output) | max. 1.2 V DC |
Product Description
MIRO TR 24VDC FK 5P OPTO-COUPLER MODULEIN: 48 VDC - OUT: 35 VDC / 2 A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
