In Stock Hot Product
6652310

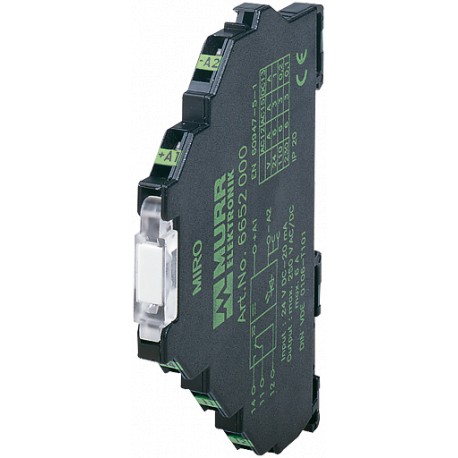

6652310 MURRELEKTRONIK MIRO OFF-DELAY ZEITRELAY 24VDC-1S
$0.00USD
3245 in stock
Key Specifications
EAN:4048879021937
AC-12:6 A (24/110/230 V AC)
AC-15:3 A (24/110/230 V AC)
DC-13:1 A (24 V DC); 0.2 A (110 V DC); 0.1 A (230 V DC)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879021937 |
| AC-12 | 6 A (24/110/230 V AC) |
| AC-15 | 3 A (24/110/230 V AC) |
| DC-13 | 1 A (24 V DC); 0.2 A (110 V DC); 0.1 A (230 V DC) |
| eClass | 27371790 |
| Input current | 20 mA (input A) |
| Input voltage | 24 V DC (+10 -15%) input A |
| Output rating | max. 1500 VA/120 W |
| Output current | max. 6 A |
| Output voltage | max. 250 V AC/DC |
| Packaging unit | 1 |
| Control current | 5 mA (input B) |
| Control voltage | 24 V DC (+10 -15%) input B |
| Mounting method | DIN-rail mountable (EN 60715) |
| Contact material | Ag Sn O2 |
| Min. load current | 100 mA (12 V DC) |
| Temperature range | 0...+55 °C |
| country of origin | CZ |
| Dimensions H×W×D | 91×6.2×70 mm |
| Mech./ elect. life | 20 000 000 switching cycles/load dependent |
| Switching frequency | max. 10 Hz |
| customs tariff number | 85364900 |
| Test isolation voltage | 4 kV; safe separation (EN 60947-1) |
| Energize/release/contact bounce time | 10/15/1.5 ms |
Product Description
MIRO OFF-DELAY ZEITRELAY 24VDC-1SMIRO 6.2 TIMER OFF-DELAY
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
