In Stock Hot Product
6644213

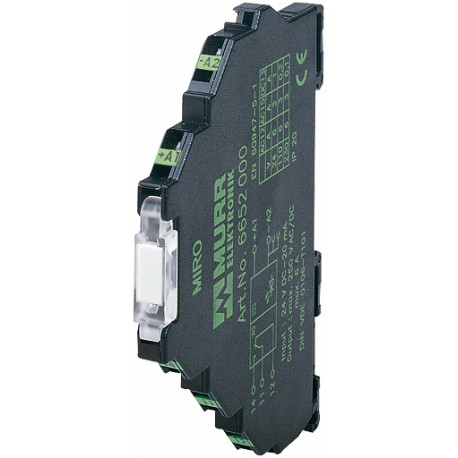

6644213 MURRELEKTRONIK MIUW ANALOG COUPLER COMPONENT
$0.00USD
3279 in stock
Key Specifications
EAN:4048879022477
Load:max. 25 mA
eClass:27210990
Frequency:max. 500 Hz
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879022477 |
| Load | max. 25 mA |
| eClass | 27210990 |
| Frequency | max. 500 Hz |
| Tolerance | max. 0.5% |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable (EN 60715) |
| Operating current | 50...70 mA |
| Operating voltage | 24 V DC ±20%, smoothed |
| Temperature range | 0...+60 °C |
| country of origin | CZ |
| Dimensions H×W×D | 91×6.2×70 mm |
| customs tariff number | 85437090 |
| Functional description | The Murrelektronik analog converters convert standard signal formats (0...10 V, 0...20 mA, 4...20 mA) galvanically separated into one of these signal formats. Due to an integrated current limiter the output is short-circuit and overload protected. Module |
| Test isolation voltage | 1.5 kV |
Product Description
MIUW ANALOG COUPLER COMPONENTIN: 4..20 mA - OUT: 0..10 V
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
