661.0160-080

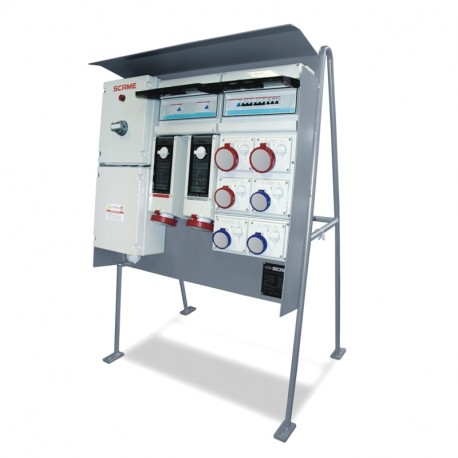

661.0160-080 SCAME MEGA DISTRIBUTION ASSEMBLY
$0.00USD
4530 in stock
Key Specifications
Volume::2.803 M3
EAN code::8001636132945
Quantity::1
Max power::90 KW
Supplier Information
SCAME
Products: 16209
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Volume: | 2.803 M3 |
| EAN code: | 8001636132945 |
| Quantity: | 1 |
| Max power: | 90 KW |
| Dimensions: | 1102X1390X1830 (MM) |
| Net Weight: | 140KG |
| Description: | Case |
| Gross weight: | 251 KG |
| Minimum order: | 1NR |
| Commercial series: | MEGA Series |
| Inlet supply unit: | With terminal block I/O |
| No. of sockets 24V: | 1 |
| Protection degree IP: | IP55 |
| No. of sockets 2P+E 16A: | 6 |
| Synthetical description: | DISTRIBUTION ASSEMBLY (ACS) |
| No. of available outlets: | 12 |
| No. of sockets 3P+N+E 16A: | 3 |
| No. of sockets 3P+N+E 32A: | 2 |
| In disp. ing/tipo apparecchio: | MCB 4P 160A |
| Harmonized System Code (HSCode): | 85371098 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
