In Stock Hot Product
63048

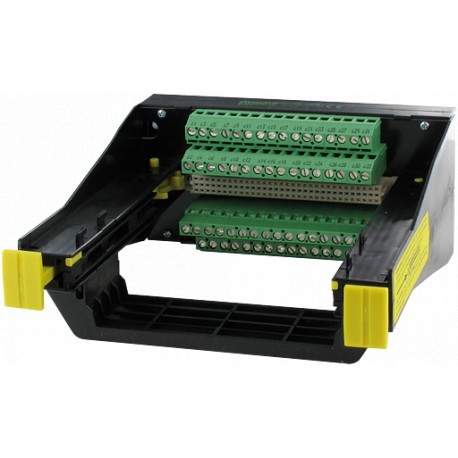

63048 MURRELEKTRONIK EUROCARD HOLDER SKP 24/7
$0.00USD
4292 in stock
Key Specifications
EAN:4048879042079
eClass:27260710
Weight::0.284 kg
Art.No.::63048
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879042079 |
| eClass | 27260710 |
| Weight: | 0.284 kg |
| Art.No.: | 63048 |
| Material | Plastic, flame retardant |
| Connection | 4 mm² single core |
| Configuration | 24-, 7-pole M (EN 60603) |
| Material group | EN 60664-1 over voltage, category I |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable (EN 60715) or screw fixing |
| Operating current | max. 4 A (24-pole)/15 A (7-pole) |
| Operating voltage | 250 V AC (24-pole)/ 500 V AC (7-pole) |
| country of origin | CZ |
| customs tariff number | 85369010 |
| Dimensions H × W × D | 137×63×170 mm |
| Functional description | To insert the card first press down the 2 yellow buttons. Then slide the Eurocard into the guide slots pushing until fully engaged. The card is now locked into position. It can be removed by pressing down on the 2 yellow buttons. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
