5TT5052-2

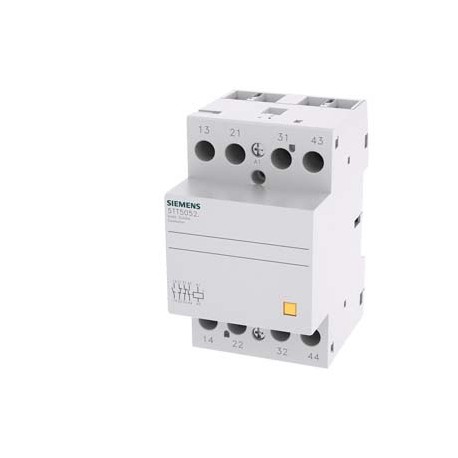

5TT5052-2 SIEMENS INSTA contactor with 2 NO contacts and 2 NC Contact for 230 V AC, 400V 63A Control AC/24 V..
$0.00USD
4169 in stock
Key Specifications
:Confirmation
EAN:4001869435312
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4001869435312 |
| UPC | Not available |
| ETIM | 5 |
| depth | 71 mm |
| width | 53.5 mm |
| eClass | 6 |
| height | 90 mm |
| Group Code | P310 |
| net weight | 150 g |
| ● maximum | 400 V |
| ● minimum | 400 V |
| Metal Factor | L-B----- |
| Date5/17/2022 | |
| Product Group | 5528 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | 5TT5 Insta Contactors, AC/DC Technology |
| Net Weight (kg) | 0,437 Kg |
| ● rated value | 24 V |
| Country of origin | Slovenia |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 64 mm |
| product brand name | SENTRON |
| Packaging Dimension | 82,00 x 94,00 x 57,00 |
| Product Description | INSTA contactor with 2 NO contacts and 2 NC Contact for 230 V AC, 400V 63A Control AC/24 V DC |
| product designation | Insta contactor |
| protection class IP | IP20 |
| design of the product | 2 NO contacts 2 NC contacts |
| number of NC contacts | 2 |
| number of NO contacts | 2 |
| control supply voltage | |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at DC / rated value | 24 V |
| General Product Approval | Declaration of Conformity |
| Built-in depth (EF000218) | 64.0 |
| Declaration of Conformity | Test Certificates |
| ● rated value / maximum | 24 V |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Utility category (EF004723) | - |
| Package size unit of measure | MM |
| number of modular width units | 3 |
| operating voltage / rated value | |
| Slider for hand switch (EF005240) | false |
| Rated operating voltage (EF001435) | ['400', '400'] |
| Rated operation current (EF007679) | 63.0 |
| Rated excitation voltage (EF008409) | ['-', '-'] |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 5TT5052-2 |
| Max. load fluorescent lamp (EF004971) | - |
| Number of modular spacings (EF004443) | 3 |
| Max. incandescent lamp load (EF004952) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Additional equipment possible (EF008148) | true |
| operational current / at AC / rated value | 63 A |
| type of voltage / of the operating voltage | AC |
| Voltage type (operating voltage) (EF005294) | AC |
| Voltage type (excitation voltage) (EF005293) | AC/DC |
| product component / slide for manual operation | No |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | - |
| Region Specific PriceGroup / Headquarter Price Group | 12F / 1BK |
| Number of contacts as normally open contact (EF008256) | 2 |
| product extension / installable / supplementary devices | Yes |
| Number of contacts as normally closed contact (EF008255) | 2 |
| type of voltage / of the operating voltage / for actuation | AC/DC |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.02.2011 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 8 W |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousUK Declaration of ConformityDeclaration of ConformityTest CertificatesotherSpecial Test CertificateMiscellaneousConfirmation | General Product Approval |
Product Description
INSTALLATION CONTACTOR WITH 2 NA CONT. AND 2 NC CONT. FOR AC 230, 400V 63A COMMAND TO ACDC24V. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
