5TT5031-0

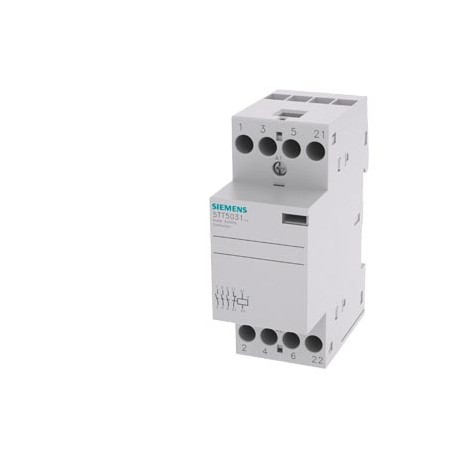

5TT5031-0 SIEMENS INSTA contactor with 3 NO contacts and 1 NC Contact for 230 V AC, 400V 25A Control 230 V A..
$0.00USD
4424 in stock
Key Specifications
:VersionClassificationeClass627-14-23-08eClass7.127-14-23-08eClass827-14-23-08eClass927-14-23-08eClass9.127-14-23-08ETIM5EC001653ETIM6EC001653ETIM7EC001653ETIM8EC001653
EAN:4001869435084
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-14-23-08eClass7.127-14-23-08eClass827-14-23-08eClass927-14-23-08eClass9.127-14-23-08ETIM5EC001653ETIM6EC001653ETIM7EC001653ETIM8EC001653 | |
| EAN | 4001869435084 |
| UPC | Not available |
| ETIM | 5 |
| eClass | 6 |
| Group Code | P310 |
| Metal Factor | L-B----- |
| Product Group | 5528 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | Ordering Data Overview |
| Net Weight (kg) | 0,285 Kg |
| Country of origin | Slovenia |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| Packaging Dimension | 82,00 x 94,00 x 40,00 |
| Product Description | INSTA contactor with 3 NO contacts and 1 NC Contact for 230 V AC, 400V 25A Control 230 V AC 220 V DC |
| Product Lifecycle (PLM) | PM300:Active Product |
| Built-in depth (EF000218) | 64.0 |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Utility category (EF004723) | - |
| Package size unit of measure | MM |
| Slider for hand switch (EF005240) | false |
| Rated operating voltage (EF001435) | ['400', '400'] |
| Rated operation current (EF007679) | 24.0 |
| Rated excitation voltage (EF008409) | ['230', '230'] |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 5TT5031-0 |
| Max. load fluorescent lamp (EF004971) | - |
| Number of modular spacings (EF004443) | 2 |
| Max. incandescent lamp load (EF004952) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Additional equipment possible (EF008148) | true |
| Voltage type (operating voltage) (EF005294) | AC |
| Voltage type (excitation voltage) (EF005293) | AC/DC |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | - |
| Region Specific PriceGroup / Headquarter Price Group | 12F / 1BK |
| Number of contacts as normally open contact (EF008256) | 3 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.02.2011 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
INSTALLATION CONTACTOR WITH 3 NA CONT. AND 1 NC CONT. FOR AC 230, 400V 25A CONTROL TO AC230V DC220V. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
