5TT4920

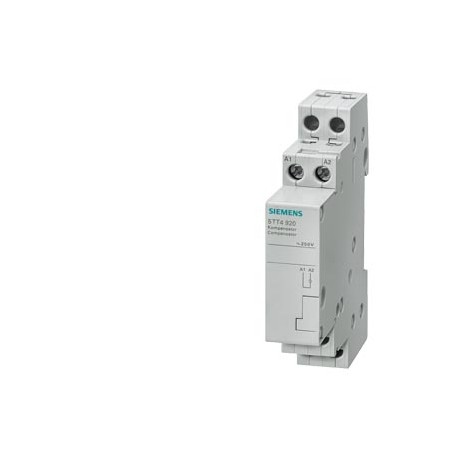

5TT4920 SIEMENS compensator for remote control switch5TT41.. for glow lamp current 20 mA
$0.00USD
4531 in stock
Key Specifications
:
EAN:4001869364889
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869364889 |
| UPC | Not available |
| ETIM | 5 |
| eClass | 6 |
| Group Code | P310 |
| net weight | 73 g |
| ● maximum | 6 mm² |
| ● minimum | 1 mm² |
| Confirmation | Miscellaneous |
| Date5/8/2022 | |
| Metal Factor | L-P----- |
| Miscellaneous | |
| Product Group | 5528 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 90303370 |
| Product family | SENTRON 5TT4 Remote Control Switches |
| supply voltage | 250 V |
| Net Weight (kg) | 0,073 Kg |
| mounting height | 90 mm |
| fastening method | DIN rail |
| Country of origin | Romania |
| mounting position | any |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | SENTRON |
| ● at cos phi 0.6 | 16 A |
| Function (EF000030) | Other |
| Packaging Dimension | 21,00 x 93,00 x 83,00 |
| Product Description | compensator for remote control switch5TT41.. for glow lamp current 20 mA |
| number of terminals | 2 |
| product designation | Remote control switch |
| protection class IP | IP20, with connected conductors |
| latching relay design | others |
| ● _1 / initial value | 50 Hz |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| supply voltage / minimum | 250 V |
| Built-in depth (EF000218) | 70.0 |
| Supply voltage (EF004127) | ['250', '250'] |
| control voltage frequency | |
| ● _1 / full-scale value | 50 Hz |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail |
| switching capacity current | |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Control voltage 1 (EF002952) | ['-', '-'] |
| Control voltage 2 (EF002953) | ['-', '-'] |
| Package size unit of measure | MM |
| number of modular width units | 1 |
| Rated switch current (EF006706) | - |
| continuous voltage fuse version | Yes |
| Manual operation possible (EF005881) | - |
| Type of control voltage 1 (EF002954) | AC/DC |
| Type of control voltage 2 (EF002955) | AC/DC |
| Article Number (Market Facing Number) | 5TT4920 |
| Max. load fluorescent lamp (EF004971) | - |
| Frequency control voltage 1 (EF002956) | ['50.0', '50.0'] |
| Frequency control voltage 2 (EF002957) | - |
| Max. incandescent lamp load (EF004952) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| Voltage type of supply voltage (EF002991) | AC |
| type of voltage / of the operating voltage | AC |
| Width in number of modular spacings (EF002950) | 1 |
| Max. switching current (cos phi = 0.6) (EF004920) | 16 |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | - |
| Number of contacts as change-over contact (EF008257) | - |
| Region Specific PriceGroup / Headquarter Price Group | 12F / 1BK |
| Number of contacts as normally open contact (EF008256) | - |
| Number of contacts as normally closed contact (EF008255) | - |
| connectable conductor cross-section / for rigid conductor | |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2007 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| connectable conductor cross-section / for flexible conductor / with core end processing | |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneousUK Declaration of ConformityConfirmationotherMiscellaneous | General Product Approval |
Product Description
Compensator for telechometers 5TT4 1..., for conventional lamp of intensity 20 mA, Ue=250 V AC, Ie= - A AC, 1 module. Cancelations and returns limited. Consult conditions.
