5TT4207-4

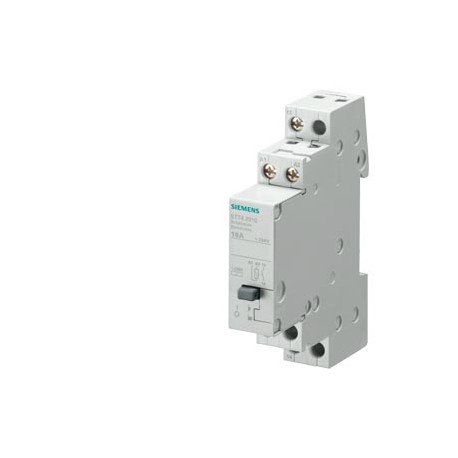

5TT4207-4 SIEMENS switching relay with 2 CO contact for 230V AC 16A control 8V AC
$0.00USD
4862 in stock
Key Specifications
:VersionClassificationeClass627-14-23-09eClass7.127-14-23-09eClass827-14-23-09eClass927-14-23-09eClass9.127-14-23-09ETIM5EC001652ETIM6EC001652ETIM7EC001652ETIM8EC001652UNSPSC1439-12-16-26
EAN:4001869312866
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-14-23-09eClass7.127-14-23-09eClass827-14-23-09eClass927-14-23-09eClass9.127-14-23-09ETIM5EC001652ETIM6EC001652ETIM7EC001652ETIM8EC001652UNSPSC1439-12-16-26 | |
| EAN | 4001869312866 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| Metal Factor | L-P----- |
| Product Group | 5528 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364190 |
| Product family | SENTRON 5TT4 Switching Relays |
| Net Weight (kg) | 0,148 Kg |
| Country of origin | Romania |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| Function (EF000030) | Partially electronic |
| Packaging Dimension | 21,00 x 93,00 x 83,00 |
| Product Description | switching relay with 2 CO contact for 230V AC 16A control 8V AC |
| Product Lifecycle (PLM) | PM300:Active Product |
| Rated current (EF000227) | 16.0 |
| Built-in depth (EF000218) | 90.0 |
| Supply voltage (EF004127) | ['400', '400'] |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Control voltage 1 (EF002952) | ['8', '8'] |
| Control voltage 2 (EF002953) | ['-', '-'] |
| Package size unit of measure | MM |
| Type of control voltage 1 (EF002954) | AC |
| Type of control voltage 2 (EF002955) | AC/DC |
| Article Number (Market Facing Number) | 5TT4207-4 |
| Max. load fluorescent lamp (EF004971) | 400 |
| Frequency control voltage 1 (EF002956) | ['50.0', '50.0'] |
| Frequency control voltage 2 (EF002957) | - |
| Max. incandescent lamp load (EF004952) | 1200 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Voltage type of supply voltage (EF002991) | AC |
| Width in number of modular spacings (EF002950) | 1 |
| Max. switching current (cos phi = 0.6) (EF004920) | 16 |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | - |
| Number of contacts as change-over contact (EF008257) | 2 |
| Region Specific PriceGroup / Headquarter Price Group | 12F / 1BK |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
Manoeuvre relay with 2 switched contacts for 230V AC 16A, 8V AC control. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
