5TT4205-2

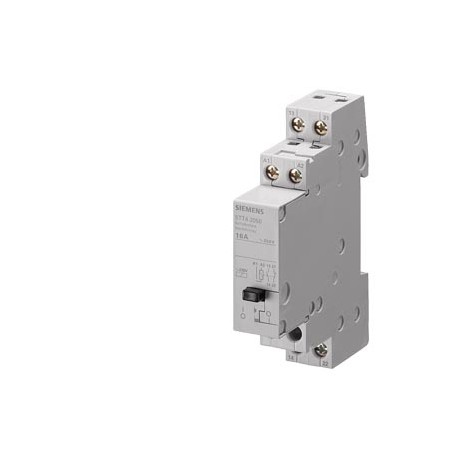

5TT4205-2 SIEMENS switching relay with 1 NO and 1 NC contact, contact for 230V AC 16A control 24V AC
$0.00USD
3133 in stock
Key Specifications
:Confirmation
EAN:4001869324210
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4001869324210 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| ● maximum | 400 V |
| ● minimum | 400 V |
| Metal Factor | L-P----- |
| relay design | partially electronic |
| Date5/14/2022 | |
| Product Group | 5528 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364190 |
| Product family | SENTRON 5TT4 Switching Relays |
| power loss [W] | |
| Net Weight (kg) | 0,139 Kg |
| control voltage | |
| type of voltage | |
| ● rated value | 16 A |
| fastening method | DIN rail |
| Country of origin | Romania |
| mounting position | any |
| operating voltage | |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 90 mm |
| product brand name | SENTRON |
| Function (EF000030) | Partially electronic |
| Packaging Dimension | 21,00 x 93,00 x 83,00 |
| Product Description | switching relay with 1 NO and 1 NC contact, contact for 230V AC 16A control 24V AC |
| operational current | |
| product designation | Switching relays |
| protection class IP | IP20, with connected conductors |
| design of the product | with 1 NC and 1 NO |
| number of CO contacts | 0 |
| number of NC contacts | 1 |
| number of NO contacts | 1 |
| ● _1 / initial value | 24 V |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 16.0 |
| ● of control voltage_1 | AC |
| Built-in depth (EF000218) | 90.0 |
| Declaration of Conformity | Test Certificates |
| Supply voltage (EF004127) | ['400', '400'] |
| control voltage frequency | |
| ● _1 / full-scale value | 24 V |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Control voltage 1 (EF002952) | ['24', '24'] |
| Control voltage 2 (EF002953) | ['-', '-'] |
| Package size unit of measure | MM |
| number of modular width units | 1 |
| design of the switching function | 1 NO + 1 NC |
| operating frequency / rated value | 50 Hz |
| required spacing / for live parts | 6 mm |
| switching capacity apparent power | |
| ● at AC / rated value / maximum | 400 V |
| width of opening / of the contacts | 1.2 mm |
| product function / direct operation | Yes |
| Type of control voltage 1 (EF002954) | AC |
| Type of control voltage 2 (EF002955) | AC/DC |
| Article Number (Market Facing Number) | 5TT4205-2 |
| Max. load fluorescent lamp (EF004971) | 400 |
| Frequency control voltage 1 (EF002956) | ['50.0', '50.0'] |
| Frequency control voltage 2 (EF002957) | - |
| Max. incandescent lamp load (EF004952) | 1200 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| surge voltage resistance / rated value | 4 kV |
| ● at cos phi 0.6 ... 1 / rated value | 16 A |
| electrical endurance (switching cycles) | 50 000 |
| type of voltage / of the supply voltage | AC |
| ● at 16 A / per contact / rated value | 1 W |
| Voltage type of supply voltage (EF002991) | AC |
| type of voltage / of the operating voltage | AC |
| number of terminals / with cross-head screw | 1 |
| switching capacity current / at cos phi 0.6 | 16 A |
| ● for uncompensated fluorescent lamp load | 400 VA |
| operating range factor / of control voltage_1 | 0.8 |
| operating range factor / of control voltage_2 | 1.1 |
| ● of magnet coil / with pulse / rated value | 2.4 W |
| Width in number of modular spacings (EF002950) | 1 |
| control voltage / at AC / rated value / maximum | 24 V |
| Max. switching current (cos phi = 0.6) (EF004920) | 16 |
| switching current / at AC / per contact / minimum | 100 mA |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | - |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 12F / 1BK |
| galvanic isolation / between magnet coil and contact | Yes |
| switching voltage / of the contacts / at AC / minimum | 10 V |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| connectable conductor cross-section / for rigid conductor | |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | - |
| switching capacity active power / with incandescent lamp load | 1 200 W |
| power loss [V∙A] / of magnet coil / with pulse / rated value | 3 VA |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| ● for rated value of the current / at AC / in hot operating state / per pole | 1 W |
| connectable conductor cross-section / for flexible conductor / with core end processing | |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousUK Declaration of ConformityDeclaration of ConformityTest CertificatesotherMiscellaneousConfirmationMiscellaneous | General Product Approval |
Product Description
Maneuvering relay with 1 NA contact and 1 NC contact for 230V AC 16A, control at 24V AC. Cancelations and returns limited. Consult conditions.
