5TT4152-0

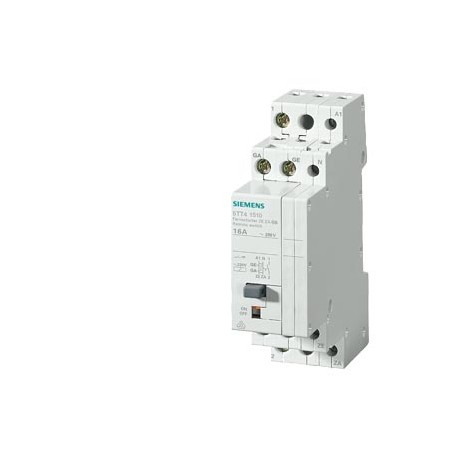

5TT4152-0 SIEMENS Remote control switch with 2 NO contacts, Central and group switching Contact for 230 V AC..
$0.00USD
3020 in stock
Key Specifications
:VersionClassificationeClass627-14-23-06eClass7.127-14-23-06eClass827-14-23-06eClass927-14-23-06eClass9.127-14-23-06ETIM5EC000188ETIM6EC000188ETIM7EC000188ETIM8EC000188
EAN:4001869370545
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-14-23-06eClass7.127-14-23-06eClass827-14-23-06eClass927-14-23-06eClass9.127-14-23-06ETIM5EC000188ETIM6EC000188ETIM7EC000188ETIM8EC000188 | |
| EAN | 4001869370545 |
| UPC | Not available |
| ETIM | 5 |
| eClass | 6 |
| Group Code | P310 |
| Metal Factor | L-P----- |
| Product Group | 5528 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | SENTRON 5TT4 Remote Control Switches |
| Net Weight (kg) | 0,173 Kg |
| Country of origin | Romania |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| Function (EF000030) | Mechanical group switch |
| Packaging Dimension | 30,00 x 93,00 x 84,00 |
| Product Description | Remote control switch with 2 NO contacts, Central and group switching Contact for 230 V AC, 400V 16A Control 230 V AC |
| Product Lifecycle (PLM) | PM300:Active Product |
| Built-in depth (EF000218) | 70.0 |
| Supply voltage (EF004127) | ['250', '250'] |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Mounting method (EF000003) | DIN rail |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Control voltage 1 (EF002952) | ['184', '253'] |
| Control voltage 2 (EF002953) | ['184', '253'] |
| Package size unit of measure | MM |
| Rated switch current (EF006706) | 16 |
| Manual operation possible (EF005881) | true |
| Type of control voltage 1 (EF002954) | AC |
| Type of control voltage 2 (EF002955) | AC |
| Article Number (Market Facing Number) | 5TT4152-0 |
| Max. load fluorescent lamp (EF004971) | 400 |
| Frequency control voltage 1 (EF002956) | ['50.0', '50.0'] |
| Frequency control voltage 2 (EF002957) | ['50.0', '50.0'] |
| Max. incandescent lamp load (EF004952) | 2000 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Voltage type of supply voltage (EF002991) | AC |
| Width in number of modular spacings (EF002950) | 1.5 |
| Max. switching current (cos phi = 0.6) (EF004920) | 16 |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | 700 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 12F / 1BK |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | 300 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2007 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.2-methyl-1-(4-methyl... CAS-No. 71868-10-5 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-oneBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
Teleswitch with 2 NA contacts, with centralized and grouped maneuver for 230/250V AC 16A, control at 230V AC. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
