5TT4142-2

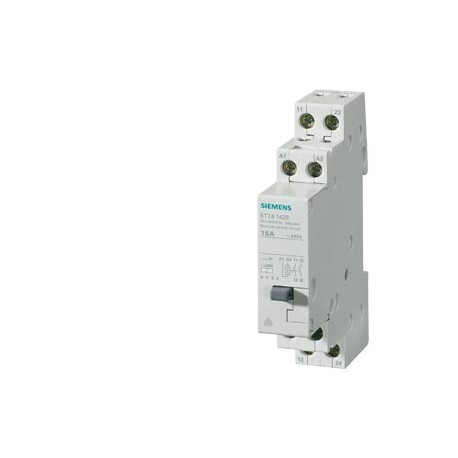

5TT4142-2 SIEMENS Remote control switch with 2 NO contacts, with shutter circuit Contact for 230 V AC, 400V ..
$0.00USD
4049 in stock
Key Specifications
:
EAN:4001869312644
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869312644 |
| UPC | Not available |
| ETIM | 5 |
| eClass | 6 |
| Group Code | P310 |
| net weight | 146 g |
| ● maximum | 6 mm² |
| ● minimum | 1 mm² |
| Confirmation | |
| Date5/4/2022 | |
| Metal Factor | L-P----- |
| Miscellaneous | Miscellaneous |
| Product Group | 5528 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365019 |
| Product family | SENTRON 5TT4 Remote Control Switches |
| power loss [W] | |
| supply voltage | 250 V |
| Net Weight (kg) | 0,146 Kg |
| control voltage | |
| mounting height | 90 mm |
| type of voltage | |
| ● rated value | 16 A |
| fastening method | DIN rail |
| Country of origin | Romania |
| Test Certificates | other |
| mounting position | any |
| switching current | |
| ● _1 / setpoint | 24 V |
| ● initial value | 0.8 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | SENTRON |
| ● at cos phi 0.6 | 16 A |
| Function (EF000030) | Other |
| Packaging Dimension | 21,00 x 93,00 x 83,00 |
| Product Description | Remote control switch with 2 NO contacts, with shutter circuit Contact for 230 V AC, 400V 16A Control 24 V AC |
| number of terminals | 6 |
| product designation | Remote control switch |
| protection class IP | IP20, with connected conductors |
| ● full-scale value | 1.1 |
| latching relay design | others |
| number of CO contacts | 0 |
| number of NC contacts | 0 |
| number of NO contacts | 2 |
| ● _1 / initial value | 19.2 V |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● with glow lamp load | 5 mA |
| General Product Approval | Declaration of Conformity |
| pulse duration / minimum | 50 ms |
| supply voltage / minimum | 250 V |
| ● of control voltage_1 | AC |
| Built-in depth (EF000218) | 70.0 |
| Supply voltage (EF004127) | ['250', '250'] |
| control voltage frequency | |
| ● _1 / full-scale value | 26.4 V |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail |
| switching capacity current | |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Control voltage 1 (EF002952) | ['19.2', '26.4'] |
| Control voltage 2 (EF002953) | ['-', '-'] |
| Package size unit of measure | MM |
| number of modular width units | 1 |
| Rated switch current (EF006706) | 16 |
| continuous voltage fuse version | Yes |
| required spacing / for live parts | 6 mm |
| switching capacity apparent power | |
| width of opening / of the contacts | 1.2 mm |
| product function / direct operation | Yes |
| Manual operation possible (EF005881) | true |
| Type of control voltage 1 (EF002954) | AC |
| Type of control voltage 2 (EF002955) | AC/DC |
| Article Number (Market Facing Number) | 5TT4142-2 |
| Max. load fluorescent lamp (EF004971) | 500 |
| Frequency control voltage 1 (EF002956) | ['50.0', '50.0'] |
| Frequency control voltage 2 (EF002957) | - |
| Max. incandescent lamp load (EF004952) | 2000 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| surge voltage resistance / rated value | 4 kV |
| electrical endurance (switching cycles) | 50 000 |
| ● at 16 A / per contact / rated value | 1.2 W |
| Voltage type of supply voltage (EF002991) | AC |
| type of voltage / of the operating voltage | AC |
| ● for uncompensated fluorescent lamp load | 500 VA |
| product component / switch position indicator | Yes |
| tightening torque / with screw-type terminals | |
| ● of magnet coil / with pulse / rated value | 4.5 W |
| Width in number of modular spacings (EF002950) | 1 |
| ● for fluorescent lamp load with DUO circuit | 900 VA |
| Max. switching current (cos phi = 0.6) (EF004920) | 16 |
| switching current / at AC / per contact / minimum | 100 mA |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | 900 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 12F / 1BK |
| galvanic isolation / between magnet coil and contact | Yes |
| switching voltage / of the contacts / at AC / minimum | 10 V |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| ● for fluorescent lamp load with parallel compensation | 400 VA |
| connectable conductor cross-section / for rigid conductor | |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | 400 |
| switching capacity active power / with incandescent lamp load | 2 000 W |
| power loss [V∙A] / of magnet coil / with pulse / rated value | 7 VA |
| ● with glow lamp load / with 5TT4 920 compensating capacitor | 25 mA |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| operating range factor control supply voltage rated value / at AC / at 50 Hz | |
| connectable conductor cross-section / for flexible conductor / with core end processing | |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousUK Declaration of ConformityTest CertificatesotherMiscellaneousMiscellaneousConfirmation | General Product Approval |
Product Description
Teleruptor with 2 NA contacts, with maneuvers for BLINDS for 230/400V AC 16A, control at 24V AC. Cancelations and returns limited. Consult conditions.
