5TT4114-1

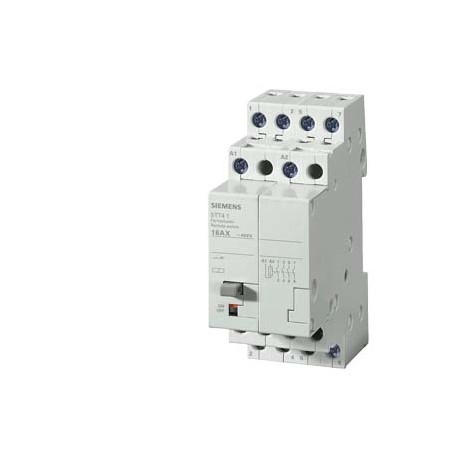

5TT4114-1 SIEMENS Remote control switch with 4 NO contacts Contact for 230 V AC, 400V 16A Control 110V DC
$0.00USD
3995 in stock
Key Specifications
:
EAN:4001869414898
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869414898 |
| UPC | Not available |
| ETIM | 5 |
| eClass | 6 |
| Group Code | P310 |
| net weight | 215 g |
| ● maximum | 6 mm² |
| ● minimum | 1 mm² |
| Confirmation | |
| Metal Factor | None |
| Date5/14/2022 | |
| Product Group | 5528 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | SENTRON 5TT4 Remote Control Switches |
| power loss [W] | |
| supply voltage | 400 V |
| Net Weight (kg) | 0,215 Kg |
| control voltage | |
| mounting height | 90 mm |
| type of voltage | |
| ● rated value | 16 A |
| fastening method | DIN rail |
| Country of origin | Romania |
| mounting position | any |
| switching current | |
| ● _1 / setpoint | 110 V |
| ● initial value | 0.8 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | SENTRON |
| ● at cos phi 0.6 | 16 A |
| Function (EF000030) | Mechanical switch |
| Packaging Dimension | 40,00 x 92,00 x 82,00 |
| Product Description | Remote control switch with 4 NO contacts Contact for 230 V AC, 400V 16A Control 110V DC |
| number of terminals | 10 |
| product designation | Remote control switch |
| protection class IP | IP20, with connected conductors |
| ● full-scale value | 1.1 |
| latching relay design | Mechanical switch |
| number of CO contacts | 0 |
| number of NC contacts | 0 |
| number of NO contacts | 4 |
| ● _1 / initial value | 88 V |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● with glow lamp load | 5 mA |
| General Product Approval | Declaration of Conformity |
| pulse duration / minimum | 50 ms |
| supply voltage / minimum | 250 V |
| ● of control voltage_1 | DC |
| Built-in depth (EF000218) | 70.0 |
| Supply voltage (EF004127) | ['250', '400'] |
| control voltage frequency | |
| ● _1 / full-scale value | 121 V |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail |
| switching capacity current | |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Control voltage 1 (EF002952) | ['88', '121'] |
| Control voltage 2 (EF002953) | ['-', '-'] |
| Package size unit of measure | MM |
| number of modular width units | 2 |
| Rated switch current (EF006706) | 16 |
| continuous voltage fuse version | Yes |
| required spacing / for live parts | 6 mm |
| switching capacity apparent power | |
| width of opening / of the contacts | 1.2 mm |
| product function / direct operation | Yes |
| Manual operation possible (EF005881) | true |
| Type of control voltage 1 (EF002954) | DC |
| Type of control voltage 2 (EF002955) | AC/DC |
| Article Number (Market Facing Number) | 5TT4114-1 |
| Max. load fluorescent lamp (EF004971) | 500 |
| Frequency control voltage 1 (EF002956) | ['50.0', '50.0'] |
| Frequency control voltage 2 (EF002957) | - |
| Max. incandescent lamp load (EF004952) | 2000 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| surge voltage resistance / rated value | 4 kV |
| electrical endurance (switching cycles) | 50 000 |
| ● at 16 A / per contact / rated value | 1.2 W |
| Voltage type of supply voltage (EF002991) | DC |
| type of voltage / of the operating voltage | DC |
| ● for uncompensated fluorescent lamp load | 500 VA |
| product component / switch position indicator | Yes |
| tightening torque / with screw-type terminals | |
| Width in number of modular spacings (EF002950) | 2 |
| ● for fluorescent lamp load with DUO circuit | 900 VA |
| Max. switching current (cos phi = 0.6) (EF004920) | 16 |
| switching current / at AC / per contact / minimum | 100 mA |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | 900 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 12F / 1BK |
| galvanic isolation / between magnet coil and contact | Yes |
| switching voltage / of the contacts / at AC / minimum | 10 V |
| Number of contacts as normally open contact (EF008256) | 4 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| ● for fluorescent lamp load with parallel compensation | 400 VA |
| connectable conductor cross-section / for rigid conductor | |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | 400 |
| switching capacity active power / with incandescent lamp load | 2 000 W |
| power loss [V∙A] / of magnet coil / with pulse / rated value | 7 VA |
| ● with glow lamp load / with 5TT4 920 compensating capacitor | 25 mA |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.02.2010 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| operating range factor control supply voltage rated value / at AC / at 50 Hz | |
| connectable conductor cross-section / for flexible conductor / with core end processing | |
| General Product ApprovalDeclaration of ConformityTest CertificatesConfirmationUK Declaration of ConformityMiscellaneousotherConfirmationMiscellaneous | General Product Approval |
Product Description
REMOTE SWITCH WITH 4 NO CONTACT FOR AC 230, 400V 16A DC CONTROL 110V. Cancelations and returns limited. Consult conditions.
