5TT4102-2

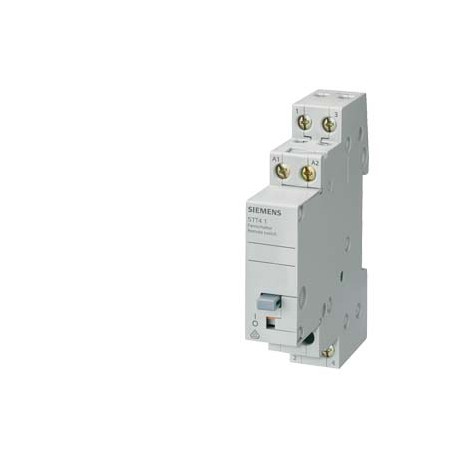

5TT4102-2 SIEMENS Remote control switch with 2 NO contacts, Contact for 230 V AC, 400V 16A Control 24 V AC
$0.00USD
3662 in stock
Key Specifications
:VersionClassificationeClass627-14-23-06eClass7.127-14-23-06eClass827-14-23-06eClass927-14-23-06eClass9.127-14-23-06ETIM5EC000188ETIM6EC000188ETIM7EC000188ETIM8EC000188
EAN:4001869312439
UPC:040892937060
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-14-23-06eClass7.127-14-23-06eClass827-14-23-06eClass927-14-23-06eClass9.127-14-23-06ETIM5EC000188ETIM6EC000188ETIM7EC000188ETIM8EC000188 | |
| EAN | 4001869312439 |
| UPC | 040892937060 |
| ETIM | 5 |
| eClass | 6 |
| Group Code | P310 |
| Metal Factor | L-P----- |
| Product Group | 5528 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365019 |
| Product family | SENTRON 5TT4 Remote Control Switches |
| Net Weight (kg) | 0,143 Kg |
| Country of origin | Romania |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| Function (EF000030) | Mechanical switch |
| Packaging Dimension | 21,00 x 93,00 x 83,00 |
| Product Description | Remote control switch with 2 NO contacts, Contact for 230 V AC, 400V 16A Control 24 V AC |
| Product Lifecycle (PLM) | PM300:Active Product |
| Built-in depth (EF000218) | 70.0 |
| Supply voltage (EF004127) | ['250', '400'] |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Control voltage 1 (EF002952) | ['19.2', '26.4'] |
| Control voltage 2 (EF002953) | ['-', '-'] |
| Package size unit of measure | MM |
| Rated switch current (EF006706) | 16 |
| Manual operation possible (EF005881) | true |
| Type of control voltage 1 (EF002954) | AC |
| Type of control voltage 2 (EF002955) | AC/DC |
| Article Number (Market Facing Number) | 5TT4102-2 |
| Max. load fluorescent lamp (EF004971) | 500 |
| Frequency control voltage 1 (EF002956) | ['50.0', '50.0'] |
| Frequency control voltage 2 (EF002957) | - |
| Max. incandescent lamp load (EF004952) | 2000 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Voltage type of supply voltage (EF002991) | AC |
| Width in number of modular spacings (EF002950) | 1 |
| Max. switching current (cos phi = 0.6) (EF004920) | 16 |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | 900 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 12F / 1BK |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | 400 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
Teleswitch with 2 NA contacts for 230/400V AC 16A, 24V AC control. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
