In Stock Hot Product
5TT3472

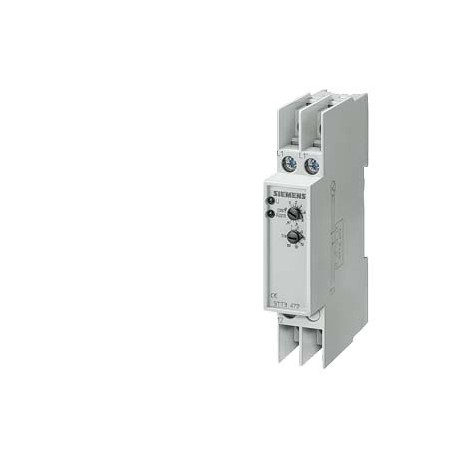

5TT3472 SIEMENS Power factor monitor as low-load monitor for induction motors
$0.00USD
3305 in stock
Key Specifications
:Value
EAN:4001869312293
UPC:Not available
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4001869312293 |
| UPC | Not available |
| ETIM | 4 |
| Depth | 64 mm |
| Width | 18 mm |
| Height | 90 mm |
| eClass | 6 |
| Group Code | P310 |
| Price Group | 13C |
| Metal Factor | L-P----- |
| Mounting type | DIN rail |
| Product Group | 5521 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 90303370 |
| Product family | 5TT3 Power Factor Monitors |
| Net Weight (kg) | 0,087 Kg |
| type of voltage | AC |
| Depth (EF000049) | 64.0 |
| Width (EF000008) | 18.0 |
| Country of origin | Germany |
| Height (EF000040) | 90.0 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 20,00 x 93,00 x 75,00 |
| Product Description | Power factor monitor as low-load monitor for induction motors |
| Product designation | Power factor monitor |
| number of width units | 1 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Rated voltage (EF003977) | - |
| Declaration of Conformity | other |
| Export Control Regulations | AL : N / ECCN : N |
| Number of phases (EF000351) | - |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Measurement current (EF008522) | - |
| Product Dimensions (W x L x H) | Not available |
| Type of measured value detection | other |
| With detachable clamps (EF003340) | - |
| Phase number / of the mains voltage | 2 |
| Product feature / Dial illumination | No |
| Rated operation frequency (EF007024) | - |
| Article Number (Market Facing Number) | 5TT3472 |
| Mounting type / Side-by-side mounting | Yes |
| Voltage type for actuating (EF008242) | - |
| Type of electric connection (EF003961) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Measured variable current / rated value | 8 A |
| Measured variable voltage / Rated value | 250 V |
| Max. permitted off-delay time (EF008191) | - |
| Min. adjustable off-delay time (EF008192) | - |
| ● Reference code / acc. to DIN EN 81346-2 | B |
| ● reference code / acc. to DIN EN 61346-2 | B |
| Adjustable setting value for Cos-Phi (EF003418) | - |
| Rated control supply voltage Us at DC (EF003980) | - |
| Max. permitted delay-on energization time (EF008189) | - |
| Number of contacts as change-over contact (EF008257) | - |
| Min. adjustable delay-on energization time (EF008190) | - |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Number of contacts as normally open contact (EF008256) | - |
| Number of contacts as normally closed contact (EF008255) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| Declaration of ConformityotherEnvironmental ConfirmationsMiscellaneous | Declaration of Conformity |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
