5TT3440

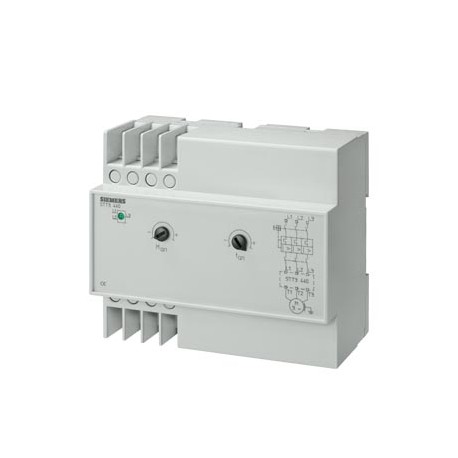

5TT3440 SIEMENS Soft starting device 400 V AC 300-5500W 3PH Overall depth 55 mm
$0.00USD
4612 in stock
Key Specifications
:
EAN:4001869155944
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869155944 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| depth | 55 mm |
| width | 105 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 90 mm |
| Group Code | P310 |
| net weight | 450 g |
| ● maximum | 230 V |
| ● minimum | 230 V |
| Confirmation | |
| Metal Factor | L-P----- |
| Date5/17/2022 | |
| Product Group | 5527 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | SENTRON 5TT3 Soft-Starting Devices |
| power loss [W] | 4.6 W |
| Net Weight (kg) | 0,444 Kg |
| type of voltage | AC |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Function (EF000030) | - |
| Packaging Dimension | 91,00 x 110,00 x 62,00 |
| Product Description | Soft starting device 400 V AC 300-5500W 3PH Overall depth 55 mm |
| product designation | Soft-starting device |
| protection class IP | IP20 |
| design of the product | 55 mm |
| control supply voltage | |
| Product Lifecycle (PLM) | PM300:Active Product |
| With display (EF000458) | - |
| General Product Approval | Declaration of Conformity |
| Release class (EF006668) | - |
| Torque control (EF009215) | - |
| Export Control Regulations | AL : N / ECCN : N |
| Internal bypass (EF009214) | - |
| Environmental Confirmations | |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| operating voltage / rated value | |
| Degree of protection (IP) (EF005474) | - |
| Article Number (Market Facing Number) | 5TT3440 |
| Rated operating voltage Ue (EF002418) | ['230', '230'] |
| Voltage type for actuating (EF008242) | AC |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| product function / motor overload protection | No |
| ● at AC / at 50 Hz / rated value / maximum | 230 V |
| ● at AC / at 50 Hz / rated value / minimum | 230 V |
| ● at AC / at 60 Hz / rated value / maximum | 230 V |
| ● at AC / at 60 Hz / rated value / minimum | 230 V |
| Integrated motor overload protection (EF007297) | false |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| Rated operation current Ie at 40 °C Tu (EF007039) | - |
| Region Specific PriceGroup / Headquarter Price Group | 13C / 1BK |
| ambient temperature / without derating / rated value | 55 °C |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['230.0', '230.0'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['230.0', '230.0'] |
| Rated surrounding temperature without derating (EF007074) | 55 |
| Rated power three-phase motor, inline, at 230 V (EF007053) | - |
| Rated power three-phase motor, inline, at 400 V (EF007054) | - |
| Rated power three-phase motor, inside delta, at 230 V (EF007055) | - |
| Rated power three-phase motor, inside delta, at 400 V (EF007056) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 4.6 W |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneousConfirmationotherEnvironmental Confirmations | General Product Approval |
Product Description
Device for soft start >N< (electronic starter), 6 modules, 400 V, 300 to 5500 W, three-phase. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
