5TT3435

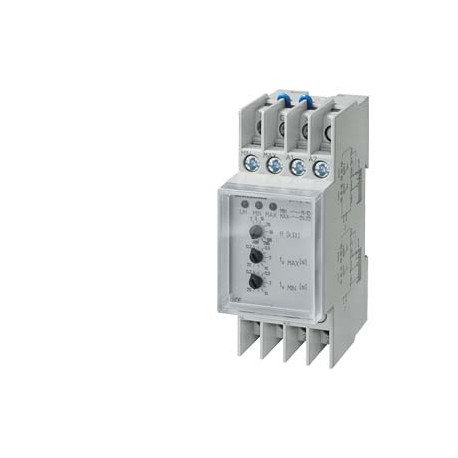

5TT3435 SIEMENS Level relay T5570 230 V AC 4A min/max With transparent cap
$0.00USD
3971 in stock
Key Specifications
:
EAN:4001869183091
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869183091 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| depth | 64 mm |
| width | 36 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 90 mm |
| Group Code | P310 |
| ● maximum | 50 °C |
| ● minimum | -20 °C |
| Confirmation | |
| Metal Factor | L-P----- |
| Date5/16/2022 | |
| Product Group | 5527 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 90261029 |
| Product family | SENTRON 5TT3 Level Relays |
| Net Weight (kg) | 0,182 Kg |
| Depth (EF000049) | 64.0 |
| Width (EF000008) | 36.0 |
| number of inputs | 3 |
| Country of origin | Germany |
| Height (EF000040) | 90.0 |
| ● initial value | 0.2 s |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| ● plug-in socket | No |
| Packaging Dimension | 37,00 x 93,00 x 75,00 |
| Product Description | Level relay T5570 230 V AC 4A min/max With transparent cap |
| product designation | Monitoring device |
| ● full-scale value | 20 s |
| Cascadable (EF000507) | - |
| design of the product | Level relays |
| control supply voltage | |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| adjustable OFF-delay time | |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| physical measuring principle | conductive |
| type of electrical connection | |
| With detachable clamps (EF003340) | - |
| Article Number (Market Facing Number) | 5TT3435 |
| Voltage type for actuating (EF008242) | - |
| ● for auxiliary and control circuit | screw-type terminals |
| Type of electric connection (EF003961) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| Max. permitted off-delay time (EF008191) | - |
| Min. adjustable off-delay time (EF008192) | - |
| Physical measurement principle (EF008238) | Conductive |
| Number of inputs for electrodes (EF003427) | - |
| Max. permitted operate delay time (EF008194) | - |
| adjustable pickup delay time / initial value | 0.2 s |
| product function / adjustable responsiveness | Yes |
| ● at AC / at 50 Hz / rated value / minimum | 230 V |
| ● at AC / at 60 Hz / rated value / minimum | 230 V |
| Min. adjustable operate delay time (EF008195) | - |
| number of CO contacts / for auxiliary contacts | 2 |
| number of NC contacts / for auxiliary contacts | 0 |
| number of NO contacts / for auxiliary contacts | 0 |
| adjustable pickup delay time / full-scale value | 20 s |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| Response value sensitivity adjustable (EF003429) | true |
| Number of contacts as change-over contact (EF008257) | - |
| Region Specific PriceGroup / Headquarter Price Group | 13C / 1BK |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Number of contacts as normally open contact (EF008256) | - |
| Number of contacts as normally closed contact (EF008255) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationConfirmationMiscellaneousEnvironmental Confirmations | General Product Approval |
Product Description
Level relay >N<, for monitoring the maximum/minimum level of liquids, programmable by X1-COM bridge, 2 modules, 230 V, 4 A, 2 switches. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
