5TT3407

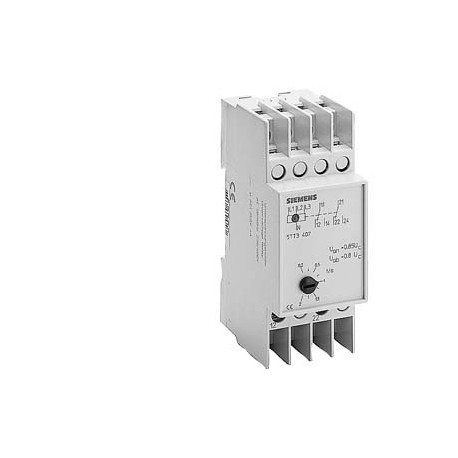

5TT3407 SIEMENS Voltage relays AC 230/400V 2CO short-time 20 ms With transparent cap
$0.00USD
4539 in stock
Key Specifications
:
EAN:4001869155852
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869155852 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| depth | 64 mm |
| width | 36 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 90 mm |
| Group Code | P310 |
| Confirmation | |
| Metal Factor | L-P----- |
| Date5/14/2022 | |
| Product Group | 5527 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | SENTRON 5TT3 Voltage Relays |
| Net Weight (kg) | 0,131 Kg |
| Depth (EF000049) | 64.0 |
| Width (EF000008) | 36.0 |
| product function | |
| Country of origin | Germany |
| Height (EF000040) | 90.0 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| ● plug-in socket | No |
| Packaging Dimension | 37,00 x 93,00 x 75,00 |
| Product Description | Voltage relays AC 230/400V 2CO short-time 20 ms With transparent cap |
| product designation | Voltage relay |
| control supply voltage | |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| Environmental Confirmations | |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| ● overvoltage detection DC | No |
| type of electrical connection | screw-type terminals |
| ● undervoltage detection DC | No |
| type of voltage / for monitoring | AC |
| Response value voltage (EF008193) | ['161', '161'] |
| With detachable clamps (EF003340) | - |
| ● overvoltage detection 1 phase | No |
| ● overvoltage detection 3 phase | No |
| ● voltage window recognition DC | No |
| ● undervoltage detection 1 phase | No |
| ● undervoltage detection 3 phases | Yes |
| Article Number (Market Facing Number) | 5TT3407 |
| Voltage type for actuating (EF008242) | - |
| Type of electric connection (EF003961) | Screw connection |
| Voltage measurement range 1 (EF006134) | ['253', '253'] |
| Voltage measurement range 2 (EF006135) | ['-', '-'] |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● voltage window recognition 1 phase | No |
| ● voltage window recognition 3 phase | No |
| Max. permitted off-delay time (EF008191) | - |
| adjustable voltage range / initial value | 161 V |
| Min. adjustable off-delay time (EF008192) | - |
| Three-phase hysteresis possible (EF003395) | false |
| measurable voltage / at AC / initial value | 253 V |
| Single-phase hysteresis possible (EF003394) | false |
| adjustable voltage range / full-scale value | 161 V |
| Contains function DC-over voltage (EF003397) | false |
| Three-phase over voltage possible (EF003393) | false |
| Type of voltage measurement range (EF003399) | AC |
| ● at AC / at 50 Hz / rated value / maximum | 230 V |
| ● at AC / at 50 Hz / rated value / minimum | 230 V |
| ● at AC / at 60 Hz / rated value / maximum | 230 V |
| ● at AC / at 60 Hz / rated value / minimum | 230 V |
| Contains function DC-under voltage (EF003396) | false |
| Single-phase over voltage possible (EF003392) | false |
| Three-phase under voltage possible (EF003391) | true |
| measurable voltage / at AC / full-scale value | 253 V |
| Single-phase under voltage possible (EF003390) | false |
| number of CO contacts / for auxiliary contacts | 2 |
| number of NC contacts / for auxiliary contacts | 0 |
| number of NO contacts / for auxiliary contacts | 0 |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| Contains function DC-voltage hysteresis (EF003398) | false |
| Max. permitted delay-on energization time (EF008189) | - |
| Number of contacts as change-over contact (EF008257) | - |
| Region Specific PriceGroup / Headquarter Price Group | 13C / 1BK |
| Min. adjustable delay-on energization time (EF008190) | - |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['230.0', '230.0'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['230.0', '230.0'] |
| Number of contacts as normally open contact (EF008256) | - |
| Number of contacts as normally closed contact (EF008255) | - |
| type of voltage / of the operating voltage / for actuation | AC |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityConfirmationMiscellaneousotherEnvironmental Confirmations | General Product Approval |
Product Description
Short-time voltage relay >N<, for monitoring 1, 2 or 3 phases with respect to N, for short voltage interruptions (< or = at 20 ms), 2 modules, Udesc.=0.8xUc, Ucon.=0.85xUc, 230/400 V, 4 A, 2 switches.
