5TT3185

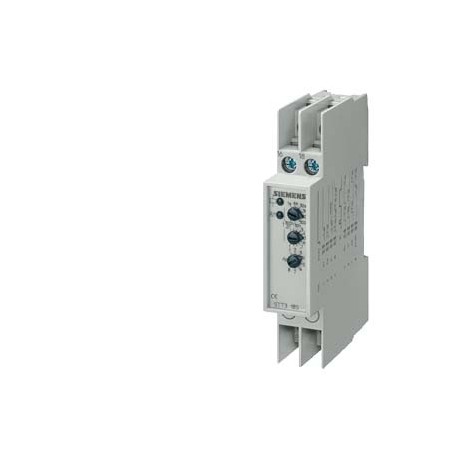

5TT3185 SIEMENS Multifunction timer Contact 230 V AC 4A 1 change-over contact Control 12-230 V AC/DC
$0.00USD
4657 in stock
Key Specifications
:VersionClassificationeClass627-37-17-90eClass7.127-37-17-90eClass827-37-16-05eClass927-37-16-05eClass9.127-37-16-05ETIM5EC001439ETIM6EC001439ETIM7EC001439ETIM8EC001439IDEA45363UNSPSC1539-12-23-29
EAN:4001869310893
UPC:662643785715
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-17-90eClass7.127-37-17-90eClass827-37-16-05eClass927-37-16-05eClass9.127-37-16-05ETIM5EC001439ETIM6EC001439ETIM7EC001439ETIM8EC001439IDEA45363UNSPSC1539-12-23-29 | |
| EAN | 4001869310893 |
| UPC | 662643785715 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P310 |
| Metal Factor | L-P----- |
| Product Group | 5523 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 91070000 |
| Product family | 5TT3 Timers for Industrial Applications |
| Net Weight (kg) | 0,083 Kg |
| Depth (EF000049) | 64.0 |
| Width (EF000008) | 18.0 |
| Country of origin | Germany |
| Height (EF000040) | 90.0 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| Packaging Dimension | 20,00 x 93,00 x 75,00 |
| Product Description | Multifunction timer Contact 230 V AC 4A 1 change-over contact Control 12-230 V AC/DC |
| Time range (EF003384) | ['0.02', '1080000.0'] |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : N |
| Nominal current (EF000001) | - |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Function star-delta (EF003380) | - |
| With plug-in socket (EF003360) | - |
| Function pulse shaping (EF003403) | - |
| Remote operation possible (EF003361) | false |
| With semiconductor output (EF003373) | false |
| Article Number (Market Facing Number) | 5TT3185 |
| Suitable as remote control (EF003362) | false |
| Voltage type for actuating (EF008242) | - |
| Suitable for front mounting (EF001127) | - |
| Type of electric connection (EF003961) | Screw connection |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Function delay-on energization (EF003374) | true |
| Function delay on de-energization (EF003401) | false |
| Pluggable on auxiliary contact block (EF006952) | false |
| Outputs, reversible delayed/undelayed (EF006988) | false |
| Rated control supply voltage Us at DC (EF003980) | - |
| Function floating contact on energization (EF003378) | false |
| Region Specific PriceGroup / Headquarter Price Group | 13C / 1BK |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Function floating contact on de-energization (EF003402) | false |
| Clock function, starting with pause, variable (EF003365) | - |
| Clock function, starting with pulse, variable (EF003366) | - |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | - |
| Number of outputs, delayed, change-over contact (EF006840) | 1 |
| Number of outputs, delayed, normally open contact (EF006839) | 0 |
| Number of outputs, undelayed, change-over contact (EF006837) | 0 |
| Function flashing, starting with pause, fixed time (EF003363) | - |
| Function flashing, starting with pulse, fixed time (EF003364) | - |
| Number of outputs, delayed, normally closed contact (EF006838) | 0 |
| Number of outputs, undelayed, normally open contact (EF006836) | 0 |
| Number of outputs, undelayed, normally closed contact (EF006835) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
