5TL1680-0

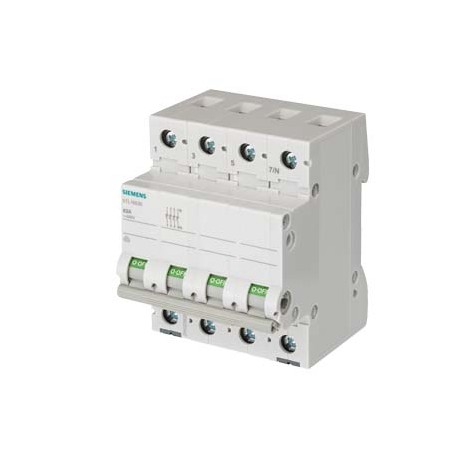

5TL1680-0 SIEMENS off switch 80A 3-pole+N
$0.00USD
4247 in stock
Key Specifications
:VersionClassificationeClass627-14-23-01eClass7.127-14-23-01eClass827-14-23-01eClass927-14-23-01eClass9.127-14-23-01ETIM5EC001545ETIM6EC001545ETIM7EC001545ETIM8EC001545UNSPSC1439-12-16-26UNSPSC1539-12-22-33
EAN:4001869469041
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-14-23-01eClass7.127-14-23-01eClass827-14-23-01eClass927-14-23-01eClass9.127-14-23-01ETIM5EC001545ETIM6EC001545ETIM7EC001545ETIM8EC001545UNSPSC1439-12-16-26UNSPSC1539-12-22-33 | |
| EAN | 4001869469041 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| Metal Factor | L-P----- |
| Product Group | 5520 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85361090 |
| Product family | SENTRON 5TL1 On/Off Switches |
| Net Weight (kg) | 0,440 Kg |
| Country of origin | China |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| Packaging Dimension | 82,00 x 92,00 x 74,00 |
| Product Description | off switch 80A 3-pole+N |
| Lamp type (EF002423) | Other |
| Lamp socket (EF004870) | Other |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 80.0 |
| Rated voltage (EF000228) | 440 |
| Built-in depth (EF000218) | 70.0 |
| Colour calotte (EF004668) | - |
| Export Control Regulations | AL : N / ECCN : N |
| Max. lamp power (EF000260) | - |
| Number of poles (EF001391) | 3 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| With signal lamp (EF000198) | false |
| Package size unit of measure | MM |
| Min. rated voltage (EF005025) | - |
| Switching function (EF000189) | Other |
| Rated switching capacity (EF002563) | 0.24 |
| Degree of protection (IP) (EF005474) | Other |
| Article Number (Market Facing Number) | 5TL1680-0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Width in number of modular spacings (EF002950) | 4 |
| Short-circuit breaking capacity (Icw) (EF002562) | 10.0 |
| Number of contacts as change-over contact (EF008257) | - |
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK |
| Number of contacts as normally open contact (EF008256) | 3 |
| Number of contacts as normally closed contact (EF008255) | - |
| Forced segregation (according to DIN VDE 0113) (EF005450) | false |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2013 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
Switch 70mm, 400V, 4 mode, 50mm2, 3 poles+N, 80A. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
