In Stock Hot Product
5TL1232-0

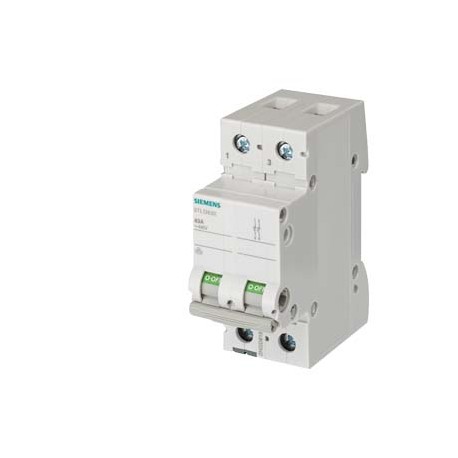

5TL1232-0 SIEMENS off switch 32A 2-pole
$0.00USD
3652 in stock
Key Specifications
:Miscellaneous
EAN:4001869468853
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Miscellaneous | |
| EAN | 4001869468853 |
| UPC | Not available |
| ETIM | 5 |
| depth | 74.5 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 89.8 mm |
| Group Code | P310 |
| net weight | 203 g |
| ● maximum | 35 mm² |
| ● minimum | 1 mm² |
| Confirmation | |
| Date5/6/2022 | |
| Metal Factor | L-P----- |
| Product Group | 5520 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85361050 |
| Product family | SENTRON 5TL1 On/Off Switches |
| Net Weight (kg) | 0,203 Kg |
| number of poles | 2 |
| Country of origin | China |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | SENTRON |
| Packaging Dimension | 82,00 x 92,00 x 39,00 |
| Product Description | off switch 32A 2-pole |
| product designation | On/Off switches |
| protection class IP | Other |
| Lamp type (EF002423) | Other |
| design of the product | 2 NO |
| number of NO contacts | 2 |
| Lamp socket (EF004870) | Other |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 32.0 |
| Rated voltage (EF000228) | 440 |
| Built-in depth (EF000218) | 70.0 |
| Colour calotte (EF004668) | - |
| Declaration of Conformity | other |
| Export Control Regulations | AL : N / ECCN : N |
| Max. lamp power (EF000260) | - |
| Number of poles (EF001391) | 2 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| With signal lamp (EF000198) | false |
| Package size unit of measure | MM |
| short-circuit current rating | 10 kA |
| Min. rated voltage (EF005025) | - |
| Switching function (EF000189) | Other |
| number of modular width units | 2 |
| operating voltage / rated value | 440 V |
| product component / signal lamp | No |
| design of the switching function | Switch disconnector |
| operational current / rated value | 32 A |
| Rated switching capacity (EF002563) | 0.096 |
| Degree of protection (IP) (EF005474) | Other |
| Article Number (Market Facing Number) | 5TL1232-0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| switching capacity current / rated value | 0.096 kA |
| type of voltage / of the operating voltage | AC |
| tightening torque / with screw-type terminals | |
| Width in number of modular spacings (EF002950) | 2 |
| ambient temperature / during storage / minimum | -25 °C |
| Short-circuit breaking capacity (Icw) (EF002562) | 10.0 |
| Number of contacts as change-over contact (EF008257) | - |
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as normally closed contact (EF008255) | - |
| Forced segregation (according to DIN VDE 0113) (EF005450) | false |
| connectable conductor cross-section / for rigid conductor | |
| product function / positive opening (acc. to DIN VDE 0113) | No |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2013 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| connectable conductor cross-section / for flexible conductor / with core end processing | |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 0.7 W |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousUK Declaration of ConformityDeclaration of ConformityotherMiscellaneous | General Product Approval |
Product Description
Switch 70mm, 400V, 2 mode, 35mm2, 2 poles, 32A. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
