5TE8152

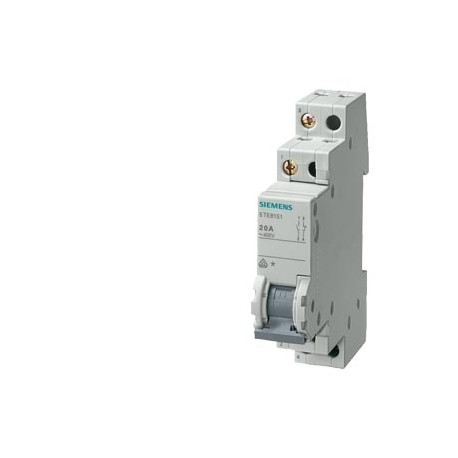

5TE8152 SIEMENS Two-way switch 20 A 2 NO 2 NC
$0.00USD
4387 in stock
Key Specifications
:
EAN:4001869209999
UPC:754554960913
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869209999 |
| UPC | 754554960913 |
| ETIM | 5 |
| depth | 18 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 90 mm |
| Group Code | P310 |
| net weight | 95 g |
| ● maximum | 6 mm² |
| ● minimum | 1 mm² |
| Confirmation | |
| Date5/7/2022 | |
| Metal Factor | L-P----- |
| Miscellaneous | Type Test Certificates/Test Report |
| Product Group | 5520 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | SENTRON 5TE8 Control Switches |
| Net Weight (kg) | 0,095 Kg |
| number of poles | 1 |
| Country of origin | Romania |
| Test Certificates | other |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | SENTRON |
| Packaging Dimension | 21,00 x 93,00 x 83,00 |
| Product Description | Two-way switch 20 A 2 NO 2 NC |
| product designation | Two-way switches |
| protection class IP | Other |
| Lamp type (EF002423) | Other |
| design of the product | 2 NO 2 NC |
| number of NC contacts | 2 |
| number of NO contacts | 2 |
| Lamp socket (EF004870) | Other |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 20.0 |
| Rated voltage (EF000228) | 400 |
| Built-in depth (EF000218) | 70.0 |
| Colour calotte (EF004668) | - |
| Export Control Regulations | AL : N / ECCN : N |
| Max. lamp power (EF000260) | - |
| Number of poles (EF001391) | 1 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| With signal lamp (EF000198) | false |
| Package size unit of measure | MM |
| short-circuit current rating | 10 kA |
| Min. rated voltage (EF005025) | - |
| Switching function (EF000189) | Two-way switch |
| number of modular width units | 1 |
| operating voltage / rated value | 400 V |
| product component / signal lamp | No |
| design of the switching function | Two-way switches |
| operational current / rated value | 20 A |
| Rated switching capacity (EF002563) | 0.06 |
| Degree of protection (IP) (EF005474) | Other |
| Article Number (Market Facing Number) | 5TE8152 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| switching capacity current / rated value | 0.06 kA |
| type of voltage / of the operating voltage | AC |
| tightening torque / with screw-type terminals | |
| Width in number of modular spacings (EF002950) | 1 |
| ambient temperature / during storage / minimum | -25 °C |
| Short-circuit breaking capacity (Icw) (EF002562) | 10.0 |
| Number of contacts as change-over contact (EF008257) | - |
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Forced segregation (according to DIN VDE 0113) (EF005450) | false |
| connectable conductor cross-section / for rigid conductor | |
| product function / positive opening (acc. to DIN VDE 0113) | No |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| connectable conductor cross-section / for flexible conductor / with core end processing | |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 0.7 W |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityTest CertificatesotherMiscellaneousType Test Certificates/Test ReportEnvironmental ConfirmationsMiscellaneous | General Product Approval |
Product Description
Switch 70mm, 230V/400V, 1 mode, 2NA+2NC, 20A. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
