5TE6802

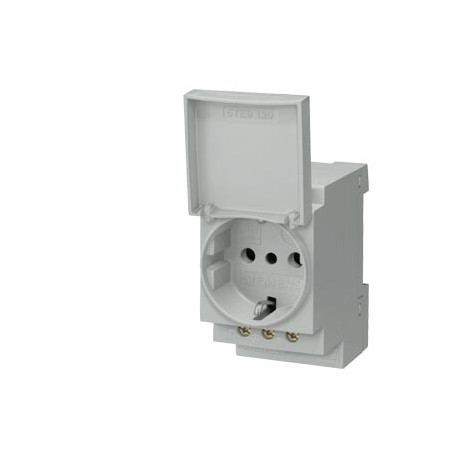

5TE6802 SIEMENS Socket outlet 16 A with cover, without approval according to DIN VDE 0620 and CEI 23-5 for i..
$0.00USD
4539 in stock
Key Specifications
:
EAN:4001869312002
UPC:040892953213
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869312002 |
| UPC | 040892953213 |
| ETIM | 5 |
| color | grey |
| depth | 75 mm |
| width | 44 mm |
| eClass | 6 |
| height | 64.5 mm |
| material | Thermoplastic |
| Group Code | P310 |
| appearance | Matt |
| net weight | 90 g |
| ● maximum | 50 Hz |
| ● minimum | 50 Hz |
| Confirmation | |
| Date5/9/2022 | |
| Metal Factor | L-P----- |
| Product Group | 5520 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| mounting type | Latching mounting |
| Commodity Code | 85366990 |
| Product family | SENTRON 5TE6 REG Socket Outlets |
| ● hinged lid | Yes |
| Net Weight (kg) | 0,091 Kg |
| stripped length | 10 mm |
| type of voltage | AC |
| Model (EF000010) | - |
| RAL color number | RAL7035 |
| fastening method | Built-in installation |
| Colour (EF000007) | Grey |
| Country of origin | Romania |
| number of sockets | 1 |
| product component | |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Lockable (EF000113) | false |
| Material (EF002169) | Plastic |
| Packaging Dimension | 49,00 x 92,00 x 84,00 |
| Product Description | Socket outlet 16 A with cover, without approval according to DIN VDE 0620 and CEI 23-5 for installation in distribution boards Version Italy |
| ambient temperature | |
| operating frequency | 50/60 Hz |
| product designation | Socket outlet |
| protection class IP | IP20 |
| Frequency (EF000416) | ['50.0', '50.0'] |
| Transparent (EF006243) | false |
| Halogen free (EF000025) | true |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Connection type (EF000124) | Screwed terminal |
| Depth of device (EF008810) | 75.0 |
| Eject-mechanism (EF001051) | false |
| Export Control Regulations | AL : N / ECCN : N |
| Impact strength (EF004293) | - |
| Mounting method (EF000003) | Built-in installation |
| Nominal current (EF000001) | 16 |
| Nominal voltage (EF000002) | 230 |
| Number of units (EF000074) | 1 |
| Width of device (EF008808) | 44.0 |
| With hinged lid (EF000117) | true |
| Height of device (EF008809) | 64.5 |
| Material quality (EF001257) | Thermoplastic |
| Number of phases (EF000351) | - |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| With signal lamp (EF000198) | - |
| material / of the enclosure | plastic |
| Package size unit of measure | MM |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Snap mounting (engagement) |
| Imprint/indication (EF003823) | Other |
| Insulated mounting (EF001588) | false |
| Protective contact (EF001033) | - |
| Surface protection (EF000139) | Other |
| With on/off switch (EF000488) | false |
| number of modular width units | 2.5 |
| type of electrical connection | Screw terminal |
| ● integrated / light source | No |
| Rated fault current (EF002358) | - |
| With miniature fuse (EF006571) | false |
| product feature / halogen-free | Yes |
| ● increased touch protection | No |
| RAL-number (similar) (EF003882) | RAL7037 |
| Special power supply (EF001334) | No special power supply |
| Rotated central insert (EF001331) | false |
| With function lighting (EF008861) | false |
| operational current / rated value | 16 A |
| Antibacterial treatment (EF023790) | false |
| Over voltage protection (EF001332) | false |
| arrangement of contacts / diagonal | No |
| Fault current protection (EF001333) | false |
| With orientation lighting (EF008862) | false |
| Article Number (Market Facing Number) | 5TE6802 |
| Protective earth pin round (EF012000) | true |
| With loop through function (EF006604) | true |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| supply voltage frequency / rated value | 50 Hz |
| Number of active pins (flat) (EF011999) | - |
| design of the special power supply unit | Without special power supply |
| Number of active pins (round) (EF011998) | - |
| reference code / according to EN 61346-2 | X |
| With built-in USB power supply (EF009258) | false |
| Label space/information surface (EF001035) | false |
| With enhanced contact protection (EF000389) | false |
| number of terminals / with cross-head screw | 1 |
| Number of modules (module system) (EF009573) | - |
| Number of socket outlets switchable (EF008814) | 0 |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| For heavy conditions (according to VDE) (EF002651) | false |
| Min. depth of built-in installation box (EF012278) | - |
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK |
| tightening torque / with screw-type terminals / maximum | 1.2 N·m |
| connectable conductor cross-section / for rigid conductor | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| connectable conductor cross-section / finely stranded / with core end processing / minimum | 0.5 mm² |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneousEnvironmental Confirmations | General Product Approval |
