In Stock Hot Product
5TE5812

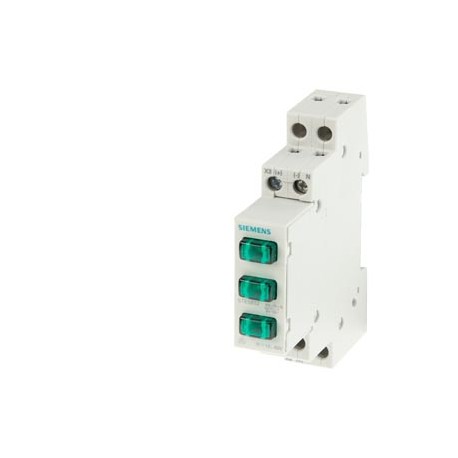

5TE5812 SIEMENS Light Indicators 3x LED 12..60V green
$0.00USD
3085 in stock
Key Specifications
:
EAN:4001869568201
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869568201 |
| UPC | Not available |
| ETIM | 5 |
| eClass | 6 |
| Group Code | P310 |
| ● maximum | 6 mm² |
| ● minimum | 1 mm² |
| Confirmation | |
| Metal Factor | None |
| Date5/12/2022 | |
| Product Group | 5520 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | SENTRON 5TE5 Light Indicators |
| Net Weight (kg) | 0,076 Kg |
| type of voltage | AC/DC |
| Country of origin | Romania |
| operating voltage | |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| installation depth | 64 mm |
| product brand name | SENTRON |
| Packaging Dimension | 21,00 x 93,00 x 83,00 |
| Product Description | Light Indicators 3x LED 12..60V green |
| ambient temperature | |
| color / of the lens | Green |
| product designation | 5TE5 indicator lights |
| protection class IP | IP20 |
| type of light source | LED |
| design of the product | LED signal detector |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| ● rated value / maximum | 60 V |
| ● rated value / minimum | 12 V |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| number of modular width units | 1 |
| socket design / for light source | others |
| Article Number (Market Facing Number) | 5TE5812 |
| ● at AC / at 50/60 Hz / rated value | 24 V |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| number of terminals / with cross-head screw | 1 |
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK |
| tightening torque / with screw-type terminals / maximum | 1.2 N·m |
| connectable conductor cross-section / for rigid conductor | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2019 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| connectable conductor cross-section / for flexible conductor / with core end processing | |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
Signal lamp/phase signaller 3 LED 12...60 V green. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
