5TE5803

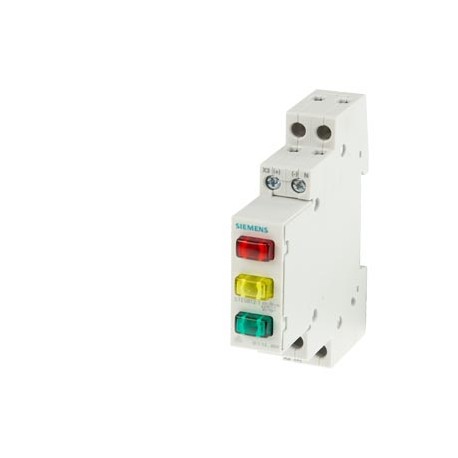

5TE5803 SIEMENS Traffic light signaling device 3 lamps 230 V red/yellow/green
$0.00USD
4912 in stock
Key Specifications
:
EAN:4001869357904
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869357904 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| ● maximum | 6 mm² |
| ● minimum | 1 mm² |
| Confirmation | |
| Date5/8/2022 | |
| Metal Factor | L-P----- |
| Miscellaneous | |
| Product Group | 5520 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | SENTRON 5TE5 Light Indicators |
| Net Weight (kg) | 0,076 Kg |
| type of voltage | AC |
| Country of origin | Romania |
| operating voltage | |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 64 mm |
| product brand name | SENTRON |
| Packaging Dimension | 21,00 x 93,00 x 83,00 |
| Product Description | Traffic light signaling device 3 lamps 230 V red/yellow/green |
| ambient temperature | |
| color / of the lens | others |
| product designation | 5TE5 indicator lights |
| protection class IP | IP20 |
| Lamp type (EF002423) | Glow lamp |
| type of light source | LED |
| design of the product | LED signal detector |
| Lamp socket (EF004870) | Other |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF000228) | 230 |
| Built-in depth (EF000218) | 64.0 |
| Colour calotte (EF004668) | Other |
| ● rated value / maximum | 230 V |
| ● rated value / minimum | 230 V |
| Export Control Regulations | AL : N / ECCN : N |
| Max. lamp power (EF000260) | 0.4 |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| number of modular width units | 1 |
| socket design / for light source | others |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 5TE5803 |
| ● at AC / at 50/60 Hz / rated value | 230 V |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| number of terminals / with cross-head screw | 1 |
| Width in number of modular spacings (EF002950) | 1 |
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK |
| tightening torque / with screw-type terminals / maximum | 1.2 N·m |
| connectable conductor cross-section / for rigid conductor | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| connectable conductor cross-section / for flexible conductor / with core end processing | |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityEnvironmental ConfirmationsotherMiscellaneous | General Product Approval |
Product Description
SEMAPHORE 3 LAMPS 230 V RED/AMAR/VERD. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
