5TE5802

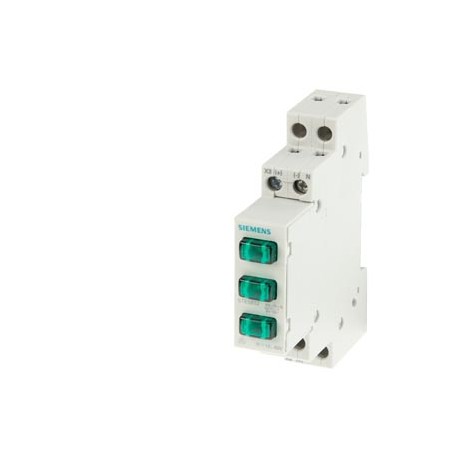

5TE5802 SIEMENS Phase signaling device 3 lamps 230 V 3x green
$0.00USD
4036 in stock
Key Specifications
:
EAN:4001869209906
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869209906 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| ● maximum | 6 mm² |
| ● minimum | 1 mm² |
| Confirmation | |
| Metal Factor | L-P----- |
| Date5/10/2022 | |
| Product Group | 5520 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | SENTRON 5TE5 Light Indicators |
| Net Weight (kg) | 0,077 Kg |
| type of voltage | AC |
| Country of origin | Romania |
| operating voltage | |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 64 mm |
| product brand name | SENTRON |
| Packaging Dimension | 21,00 x 93,00 x 83,00 |
| Product Description | Phase signaling device 3 lamps 230 V 3x green |
| ambient temperature | |
| color / of the lens | Green |
| product designation | 5TE5 indicator lights |
| protection class IP | IP20 |
| Lamp type (EF002423) | Glow lamp |
| type of light source | LED |
| design of the product | LED signal detector |
| Lamp socket (EF004870) | Other |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF000228) | 230 |
| Built-in depth (EF000218) | 64.0 |
| Colour calotte (EF004668) | Other |
| ● rated value / maximum | 230 V |
| ● rated value / minimum | 230 V |
| Export Control Regulations | AL : N / ECCN : N |
| Max. lamp power (EF000260) | 0.4 |
| Environmental Confirmations | |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| number of modular width units | 1 |
| socket design / for light source | others |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 5TE5802 |
| ● at AC / at 50/60 Hz / rated value | 230 V |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| number of terminals / with cross-head screw | 1 |
| Width in number of modular spacings (EF002950) | 1 |
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK |
| tightening torque / with screw-type terminals / maximum | 1.2 N·m |
| connectable conductor cross-section / for rigid conductor | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| connectable conductor cross-section / for flexible conductor / with core end processing | |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneousotherEnvironmental Confirmations | General Product Approval |
