5TE4821

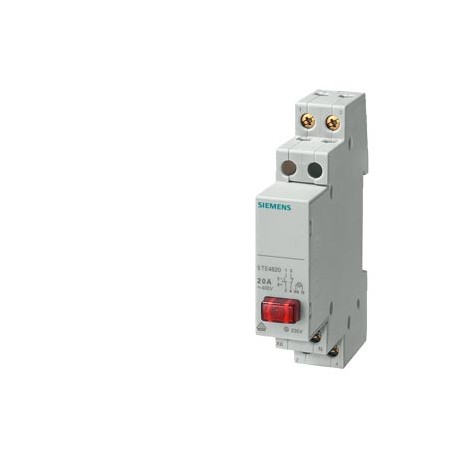

5TE4821 SIEMENS button, 1 NO 20 A 1 key red, Lamp 230 V
$0.00USD
3028 in stock
Key Specifications
:
EAN:4001869209807
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869209807 |
| UPC | Not available |
| ETIM | 5 |
| color | |
| depth | 70 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 90 mm |
| Group Code | P310 |
| net weight | 73 g |
| ● maximum | 0.6 W |
| ● minimum | 1 mm² |
| Confirmation | |
| Date5/8/2022 | |
| Metal Factor | L-P----- |
| Miscellaneous | Miscellaneous |
| Product Group | 5520 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | SENTRON 5TE4 Pushbuttons |
| number of keys | 1 |
| power loss [W] | |
| Net Weight (kg) | 0,072 Kg |
| Country of origin | Romania |
| Test Certificates | other |
| ● of the button | red |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | SENTRON |
| Packaging Dimension | 21,00 x 93,00 x 83,00 |
| Product Description | button, 1 NO 20 A 1 key red, Lamp 230 V |
| product designation | Pushbutton |
| protection class IP | IP20 |
| Lamp type (EF002423) | Glow lamp |
| type of light source | LED |
| design of the product | 1 NO contact |
| number of CO contacts | 0 |
| number of NC contacts | 0 |
| number of NO contacts | 1 |
| Lamp socket (EF004870) | Other |
| Lamp voltage (EF008856) | - |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| making capacity current | 60 A |
| Colour button (EF000190) | Red |
| General Product Approval | Declaration of Conformity |
| Built-in depth (EF000218) | 70.0 |
| Colour calotte (EF004668) | Red |
| breaking capacity current | 60 A |
| Export Control Regulations | AL : N / ECCN : N |
| Max. lamp power (EF000260) | 0.17 |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| With signal lamp (EF000198) | true |
| Package size unit of measure | MM |
| Switching current (EF000188) | - |
| Switching voltage (EF003586) | - |
| number of modular width units | 1 |
| operating voltage / rated value | 400 V |
| product component / signal lamp | Yes |
| socket design / for light source | others |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 5TE4821 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| surge voltage resistance / rated value | 4 kV |
| operational current / at AC / rated value | 20 A |
| type of voltage / of the operating voltage | AC |
| tightening torque / with screw-type terminals | |
| Width in number of modular spacings (EF002950) | 1 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK |
| mechanical service life (switching cycles) / typical | 25 000 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| connectable conductor cross-section / for rigid conductor | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| ● for rated value of the current / at AC / in hot operating state / per pole | 0.6 W |
| connectable conductor cross-section / for flexible conductor / with core end processing | |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityTest CertificatesotherMiscellaneousMiscellaneousEnvironmental Confirmations | General Product Approval |
Product Description
Push button lum 70mm, red button, 230V, 1 mód., cont mant, p/max 5m cond, 1NA, 20A. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
