5TE4800

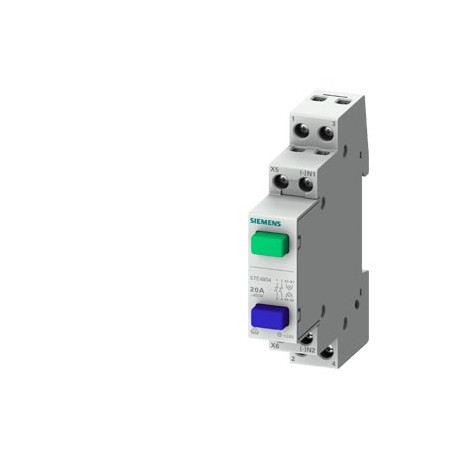

5TE4800 SIEMENS button, 1 NO/1 NC 20 A 1 key gray without latching function
$0.00USD
4136 in stock
Key Specifications
:
EAN:4001869209739
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869209739 |
| UPC | Not available |
| ETIM | 5 |
| color | |
| depth | 70 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 90 mm |
| Group Code | P310 |
| net weight | 73 g |
| ● maximum | 0.6 W |
| ● minimum | 1 mm² |
| Confirmation | |
| Metal Factor | L-P----- |
| Date5/16/2022 | |
| Miscellaneous | Environmental Confirmations |
| Product Group | 5520 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | SENTRON 5TE4 Pushbuttons |
| number of keys | 1 |
| power loss [W] | |
| Net Weight (kg) | 0,073 Kg |
| Country of origin | Romania |
| Test Certificates | other |
| ● of the button | grey |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | SENTRON |
| Packaging Dimension | 21,00 x 93,00 x 83,00 |
| Product Description | button, 1 NO/1 NC 20 A 1 key gray without latching function |
| product designation | Pushbutton |
| protection class IP | IP20 |
| Lamp type (EF002423) | Not applicable |
| type of light source | LED |
| design of the product | 1 NO contact/1 NC contact |
| number of CO contacts | 0 |
| number of NC contacts | 1 |
| number of NO contacts | 1 |
| Lamp socket (EF004870) | Not applicable |
| Lamp voltage (EF008856) | - |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| making capacity current | 60 A |
| Colour button (EF000190) | Grey |
| General Product Approval | Declaration of Conformity |
| Built-in depth (EF000218) | 70.0 |
| Colour calotte (EF004668) | Not applicable |
| breaking capacity current | 60 A |
| Export Control Regulations | AL : N / ECCN : N |
| Max. lamp power (EF000260) | - |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| With signal lamp (EF000198) | false |
| Package size unit of measure | MM |
| Switching current (EF000188) | - |
| Switching voltage (EF003586) | - |
| number of modular width units | 1 |
| operating voltage / rated value | 230 V |
| product component / signal lamp | No |
| socket design / for light source | others |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 5TE4800 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| surge voltage resistance / rated value | 4 kV |
| operational current / at AC / rated value | 20 A |
| type of voltage / of the operating voltage | AC |
| tightening torque / with screw-type terminals | |
| Width in number of modular spacings (EF002950) | 1 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK |
| mechanical service life (switching cycles) / typical | 25 000 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| connectable conductor cross-section / for rigid conductor | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| ● for rated value of the current / at AC / in hot operating state / per pole | 0.6 W |
| connectable conductor cross-section / for flexible conductor / with core end processing | |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityTest CertificatesotherMiscellaneousEnvironmental ConfirmationsMiscellaneous | General Product Approval |
