5TE2813-0

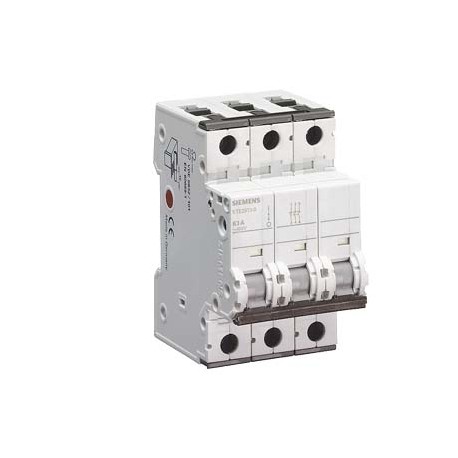

5TE2813-0 SIEMENS Switch 400V 3-pole 125 A
$0.00USD
4770 in stock
Key Specifications
:
EAN:4001869304960
UPC:Not available
Group Code:P310
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869304960 |
| UPC | Not available |
| Group Code | P310 |
| Confirmation | |
| Metal Factor | L-P----- |
| Date5/15/2022 | |
| Product Group | 5520 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362090 |
| Product family | Not available |
| type of device | other |
| Net Weight (kg) | 0,710 Kg |
| number of poles | 3 |
| ● main switch | No |
| ● motor drive | No |
| fastening method | standard rail |
| Country of origin | Turkey |
| ● safety switch | No |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 95,00 x 86,00 x 83,00 |
| Product Description | Switch 400V 3-pole 125 A |
| product designation | ON and OFF switch |
| protection class IP | IP20 |
| suitability for use | |
| ● voltage trigger | No |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● switch disconnector | Yes |
| General Product Approval | Declaration of Conformity |
| Interlockable (EF006281) | false |
| ● EMERGENCY OFF switch | No |
| Export Control Regulations | ECCN : N / AL : N |
| Number of poles (EF001391) | 3 |
| Environmental Confirmations | Miscellaneous |
| Standard lead time ex-works | 30 Day/Days |
| Surcharge for Raw Materials | None |
| product feature / interlock | No |
| Package size unit of measure | MM |
| product extension / optional | |
| Number of switches (EF005586) | - |
| ● maintenance/repair switch | No |
| Device construction (EF008240) | Complete device in housing |
| Motor drive optional (EF007386) | false |
| design of the actuating element | toggle handle |
| Colour control element (EF007167) | - |
| Motor drive integrated (EF006697) | false |
| Version as main switch (EF006981) | false |
| operational current / rated value | 125 A |
| Rated operating voltage (EF001435) | - |
| Type of control element (EF006976) | Rocker lever |
| Switching power at 400 V (EF009166) | - |
| Version as safety switch (EF006985) | false |
| Voltage release optional (EF007491) | false |
| Article Number (Market Facing Number) | 5TE2813-0 |
| Rated permanent current Iu (EF001389) | 125.0 |
| Degree of protection (NEMA) (EF011959) | - |
| Suitable for floor mounting (EF007243) | - |
| Version as reversing switch (EF009408) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| type of the driving mechanism / motor drive | No |
| Max. rated operation voltage Ue AC (EF007355) | 400 |
| Suitable for front mounting 4-hole (EF007247) | - |
| Suitable for front mounting centre (EF007248) | - |
| Suitable for intermediate mounting (EF007264) | - |
| number of CO contacts / for auxiliary contacts | 0 |
| number of NC contacts / for auxiliary contacts | 0 |
| number of NO contacts / for auxiliary contacts | 3 |
| Rated operation power at AC-3, 400 V (EF001364) | - |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Rated operation power at AC-23, 400 V (EF007027) | - |
| suitability for integration / distribution board | Yes |
| Rated short-time withstand current lcw (EF007050) | - |
| Version as emergency stop installation (EF006959) | false |
| Version as maintenance-/service switch (EF006986) | false |
| Rated permanent current at AC-21, 400 V (EF009165) | - |
| Rated permanent current at AC-23, 400 V (EF011777) | - |
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK |
| Conditioned rated short-circuit current Iq (EF001444) | - |
| Suitable for distribution board installation (EF007262) | - |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| type of electrical connection / for main current circuit | screw-type terminals |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Tris(4-nonylphenyl, branc... > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Tris(4-nonylphenyl, branched and linear) phosphite (TNPP) with greater than or equal to 0.1% w/w of 4-nonylphenol, branched and linear (4-NP)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalDeclaration of ConformityTest CertificatesConfirmationUK Declaration of ConformityMiscellaneousotherEnvironmental ConfirmationsMiscellaneous | General Product Approval |
Product Description
SWITCH 400 V 3 POLES, 125 A. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
