5TE1220

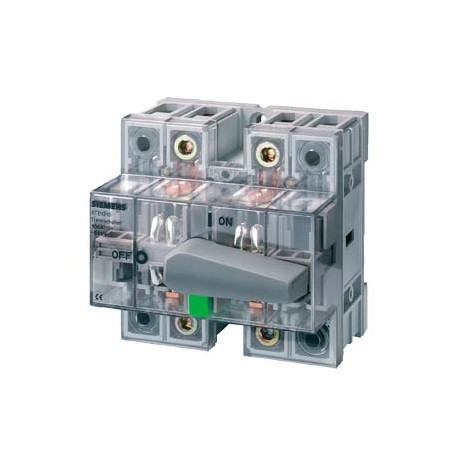

5TE1220 SIEMENS Disconnector, T92 690 V 125 A 2-pole transparent
$0.00USD
4657 in stock
Key Specifications
:Value
EAN:4001869156590
UPC:Not available
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4001869156590 |
| UPC | Not available |
| ETIM | 4 |
| Depth | 92.5 mm |
| Height | 90 mm |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P310 |
| Price Group | 13D |
| Metal Factor | L-P----- |
| Mounting type | standard rail |
| Product Group | 5520 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362090 |
| Product family | 5TE1 Switch Disconnectors up to 200 A |
| Type of device | other |
| Net Weight (kg) | 0,473 Kg |
| Operating power | |
| number of poles | 2 |
| ● Main switch | No |
| ● motor drive | No |
| Country of origin | Poland |
| ● safety switch | No |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 100,00 x 100,00 x 100,00 |
| Product Description | Disconnector, T92 690 V 125 A 2-pole transparent |
| Product designation | Switch disconnector |
| Protection class IP | IP20 |
| Suitability for use | |
| ● Voltage trigger | No |
| Design of the product | transparent |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● switch disconnector | Yes |
| Interlockable (EF006281) | false |
| ● EMERGENCY OFF switch | No |
| Declaration of Conformity | other |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 2 |
| Product feature / interlock | No |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Product extension / optional | |
| Number of switches (EF005586) | - |
| ● maintenance/repair switch | Yes |
| Device construction (EF008240) | Complete device in housing |
| Product Dimensions (W x L x H) | Not available |
| Motor drive optional (EF007386) | false |
| Operating current / rated value | 125 A |
| Continuous current / rated value | 125 A |
| Colour control element (EF007167) | - |
| Design of the operating mechanism | selector switch |
| Motor drive integrated (EF006697) | false |
| Version as main switch (EF006981) | false |
| Rated operating voltage (EF001435) | - |
| Type of control element (EF006976) | Toggle |
| Switching power at 400 V (EF009166) | - |
| Version as safety switch (EF006985) | false |
| Voltage release optional (EF007491) | false |
| Article Number (Market Facing Number) | 5TE1220 |
| Rated permanent current Iu (EF001389) | 125.0 |
| Degree of protection (NEMA) (EF011959) | - |
| Suitable for floor mounting (EF007243) | - |
| Version as reversing switch (EF009408) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Operating current / at AC / rated value | 125 A |
| ● Mounting type / central front mounting | No |
| Type of the driving mechanism / motor drive | No |
| Max. rated operation voltage Ue AC (EF007355) | 690 |
| Suitable for front mounting 4-hole (EF007247) | - |
| Suitable for front mounting centre (EF007248) | - |
| Suitable for intermediate mounting (EF007264) | - |
| Number of CO contacts / for auxiliary contacts | 0 |
| Number of NC contacts / for auxiliary contacts | 0 |
| Number of NO contacts / for auxiliary contacts | 2 |
| Rated operation power at AC-3, 400 V (EF001364) | - |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Rated operation power at AC-23, 400 V (EF007027) | 44.0 |
| Suitability for integration / Distribution board | Yes |
| Rated short-time withstand current lcw (EF007050) | - |
| Version as emergency stop installation (EF006959) | false |
| Version as maintenance-/service switch (EF006986) | true |
| Rated permanent current at AC-21, 400 V (EF009165) | - |
| Rated permanent current at AC-23, 400 V (EF011777) | - |
| Conditioned rated short-circuit current Iq (EF001444) | - |
| Operating voltage / at AC / at 50/60 Hz / rated value | 690 V |
| ● at AC-23 A / at 400 V / at 50/60 Hz / rated value | 44 kW |
| Suitable for distribution board installation (EF007262) | - |
| Type of electrical connection / for main current circuit | screw-type terminals |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Declaration of ConformityotherEnvironmental Confirmations | Declaration of Conformity |
| ● Mounting type / front mounting with 4-hole attachment | No |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
