5SY7204-8

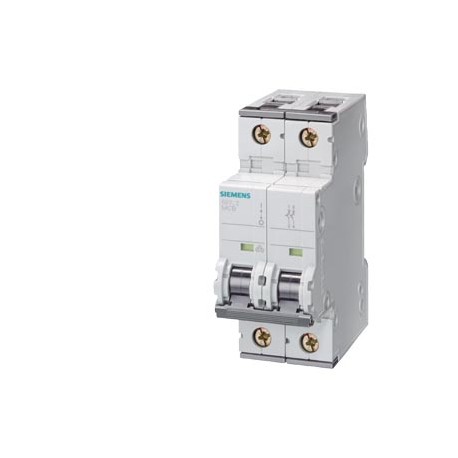

5SY7204-8 SIEMENS Miniature circuit breaker 400 V 15kA, 2-pole, D, 4A, D 70 mm
$0.00USD
3074 in stock
Key Specifications
:Confirmation
EAN:4001869200132
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4001869200132 |
| UPC | Not available |
| ETIM | 5 |
| depth | 76 mm |
| width | 36 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 90 mm |
| standard | IEC / EN 60898-1, IEC / EN 60947-2 / UL1077 |
| Group Code | P310 |
| net weight | 286 g |
| ● maximum | 35 mm² |
| ● minimum | 0.75 mm² |
| Confirmation | Vibration and Shock |
| Metal Factor | L-O----- |
| ● sealable | Yes |
| Date5/10/2022 | |
| Product Group | 5526 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | Basic Devices |
| design of pole | 2P |
| reference code | |
| supply voltage | |
| Net Weight (kg) | 0,307 Kg |
| number of poles | 2 |
| product feature | |
| fastening method | Quick assembly system |
| ● halogen-free | Yes |
| ● silicon-free | Yes |
| Country of origin | Germany |
| Marine / Shipping | other |
| mounting position | any |
| product component | |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | SENTRON |
| Packaging Dimension | 40,00 x 92,00 x 84,00 |
| Product Description | Miniature circuit breaker 400 V 15kA, 2-pole, D, 4A, D=70 mm |
| degree of pollution | 3 |
| operational current | |
| product designation | Miniature circuit breaker |
| protection class IP | IP20, with connected conductors |
| Frequency (EF000416) | ['50.0', '50.0'] |
| overvoltage category | III |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC/DC |
| insulation voltage (Ui) | |
| ● at AC / rated value | 400 V |
| General Product Approval | EMC |
| Rated current (EF000227) | 4 |
| Rated voltage (EF000228) | 400 |
| Built-in depth (EF000218) | 70.0 |
| suitability for operation | Mechanical engineering / industry |
| ● combined terminal top | Yes |
| Export Control Regulations | AL : N / ECCN : N |
| switching capacity current | |
| Pollution degree (EF002570) | 3 |
| Standard lead time ex-works | 95 Day/Days |
| Surcharge for Raw Materials | None |
| ● according to EN 61346-2 | F |
| ● at 35 °C / rated value | 4 A |
| ● at 40 °C / rated value | 3.76 A |
| ● at 45 °C / rated value | 3.63 A |
| ● at 50 °C / rated value | 3.5 A |
| ● at 55 °C / rated value | 3.36 A |
| ● at 60 °C / rated value | 3.22 A |
| Package size unit of measure | MM |
| ● according to IEC 81346-2 | F |
| ● combined terminal bottom | Yes |
| number of modular width units | 2 |
| tripping characteristic class | D |
| position / of power supply cord | Any |
| Over voltage category (EF002569) | 3 |
| Current limiting class (EF002568) | 3 |
| Release characteristic (EF000889) | D |
| Number of poles (total) (EF008618) | 2 |
| product feature / touch protection | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of protected poles (EF005548) | 2P |
| ambient temperature / during storage | |
| Article Number (Market Facing Number) | 5SY7204-8 |
| Rated insulation voltage Ui (EF001366) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| ● according to EN 60898 / rated value | 15 kA |
| Additional equipment possible (EF008148) | true |
| influence of the surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| type of voltage / of the operating voltage | AC |
| ● according to IEC 60947-2 / rated value | 40 kA |
| Concurrently switching N-neutral (EF005997) | false |
| connectable conductor cross-section / solid | |
| breaking capacity short-circuit current (Icn) | |
| tightening torque / with screw-type terminals | |
| value range / of the supply voltage frequency | 50/60 Hz |
| Width in number of modular spacings (EF002950) | 2 |
| connectable conductor cross-section / stranded | |
| Ambient temperature during operating (EF007515) | ['-25', '55'] |
| Rated impulse withstand voltage Uimp (EF011980) | - |
| product component / neutral conductor switching | No |
| operating voltage / at DC / rated value / maximum | 72 V |
| vibration resistance / according to IEC 60068-2-6 | ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
| Suitable for flush-mounted installation (EF006573) | false |
| ● at DC / according to IEC 60947-2 / rated value | 15 kA |
| Region Specific PriceGroup / Headquarter Price Group | 12C / 1AA |
| mechanical service life (switching cycles) / typical | 10 000 |
| ● with multi-phase operation / at AC / rated value | 440 V |
| ● at AC / according to UL 1077 and CSA C22.2 No.235 | 5 kA |
| ● with single-phase operation / at AC / rated value | 440 V |
| product extension / installable / supplementary devices | Yes |
| tightening torque [lbf·in] / with screw-type terminals | |
| AWG number / as coded connectable conductor cross section | |
| Connectable conductor cross section solid-core (EF007337) | ['0.75', '35.0'] |
| Connectable conductor cross section multi-wired (EF007343) | ['0.75', '35.0'] |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| supply voltage / with single-phase operation / at AC / rated value | 230 V |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2006 |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V (EF009556) | 15.0 |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V (EF009555) | 15.0 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V (EF009557) | 40.0 |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V (EF009558) | 40.0 |
| number of test cycles / for environmental testing / according to IEC 60068-2-30 | 6 |
| connectable conductor cross-section / finely stranded / with core end processing | |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.2 W |
| General Product ApprovalConfirmationMiscellaneousGeneral Product ApprovalEMCDeclaration of ConformityTest CertificatesMiscellaneousUK Declaration of ConformitySpecial Test CertificateMarine / ShippingotherMiscellaneousRailwayConfirmationVibration and Shock | General Product Approval |
Product Description
Accessable circuit breaker, 15kA, curve D, 2 poles, 4A. Cancelations and returns limited. Consult conditions.
