In Stock Hot Product
5SW3300

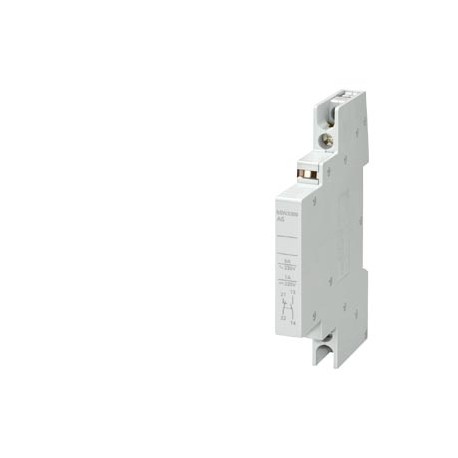

5SW3300 SIEMENS Auxiliary current switch can be attached for residual current operated circuit breaker 5SM3 ..
$0.00USD
4635 in stock
Key Specifications
:Value
EAN:4001869186412
UPC:754554937465
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4001869186412 |
| UPC | 754554937465 |
| ETIM | 4 |
| IDEA | 4 |
| Notes | Sucessor:Further information via contact partner: www.siemens.com/lowvoltage/contactThis product is a Spare Part, please visit the Spares & Service section for more informationIf you need assistance please contact our local Siemens office |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P310 |
| net weight | 54 g |
| Price Group | 12E |
| Metal Factor | L-O----- |
| Product Group | 5512 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Additional Components |
| Net Weight (kg) | 0,052 Kg |
| ● rated value | 230 V |
| Country of origin | Czech Republic |
| Operating voltage | |
| Product extension | Auxiliary current switch |
| LKZ_FDB/ CatalogID | LV10.1 |
| PLM Effective Date | Product phase-out since: 02.12.2019 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 92,00 x 18,00 x 82,00 |
| Product Description | Auxiliary current switch can be attached for residual current operated circuit breaker 5SM3 for 16 A to 80 A, 1 NO+1 NC |
| Product designation | Auxiliary current switch |
| Design of the product | Mountable |
| Number of CO contacts | 0 |
| Number of NC contacts | 1 |
| Number of NO contacts | 1 |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| Rated voltage (EF000228) | 230 |
| Declaration of Conformity | Declaration of Conformity |
| Device fitting (EF007826) | Earth leakage switch |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Assembly width (TE) (EF003569) | 0.5 |
| Product Dimensions (W x L x H) | Not available |
| Additional equipment (EF008146) | Auxiliary switch |
| Number of fault signal contacts | 0 |
| Rated switch current (EF006706) | 6 |
| Installed at the factory (EF002581) | false |
| Article Number (Market Facing Number) | 5SW3300 |
| Voltage type for actuating (EF008242) | AC/DC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Number of fault-signal switches (EF007613) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| With auto test for earth leakage function (EF008727) | - |
| Number of contacts as normally open contact (EF008256) | 1 |
| Suitable for max. current main contact unit (EF008730) | - |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Compliance with the substance restrictions according to RoHS directive | Given |
| Suitable for max. number of poles main contact unit (total) (EF008729) | - |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
