5SV8706-0KK

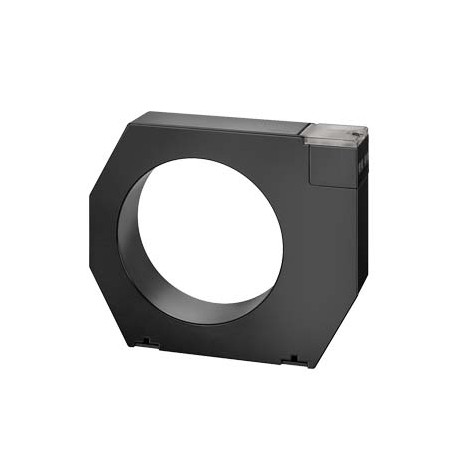

5SV8706-0KK SIEMENS Summation current transformer 210 mm
$0.00USD
3861 in stock
Key Specifications
:
EAN:4001869397702
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869397702 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| depth | 284 mm |
| width | 299 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 33 mm |
| Group Code | P310 |
| net weight | 2 500 g |
| ● maximum | 720 V |
| ● minimum | 50 Hz |
| Confirmation | |
| Date5/6/2022 | |
| Metal Factor | L-A----- |
| Product Group | 5509 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 90309000 |
| Product family | SENTRON 5SV8 Residual Current Monitors |
| reference code | |
| Net Weight (kg) | 1,780 Kg |
| Depth (EF000049) | 284.0 |
| Width (EF000008) | 299.0 |
| Country of origin | Spain |
| Height (EF000040) | 33.0 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Function (EF000030) | - |
| Packaging Dimension | 320,00 x 300,00 x 50,00 |
| Product Description | Summation current transformer 210 mm |
| product designation | summation current transformer |
| design of the product | type A |
| wire length / maximum | 10 m |
| control supply voltage | |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF003977) | ['-', '720'] |
| Export Control Regulations | AL : N / ECCN : N |
| Rated frequency (EF001663) | - |
| Standard lead time ex-works | 40 Day/Days |
| Surcharge for Raw Materials | None |
| ● according to EN 61346-2 | T |
| Package size unit of measure | MM |
| ● according to IEC 81346-2 | T |
| type of electrical connection | screw-type terminals |
| operating voltage / rated value | |
| product function / error memory | No |
| residual current (Idn) / minimum | 300 mA |
| With detachable clamps (EF003340) | - |
| operating frequency / rated value | |
| operational current / rated value | 630 A |
| Response value amperage 1 (EF008204) | - |
| Response value amperage 2 (EF008205) | - |
| Article Number (Market Facing Number) | 5SV8706-0KK |
| Voltage type for actuating (EF008242) | - |
| Error registration possible (EF003423) | false |
| Type of electric connection (EF003961) | Screw connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| surge voltage resistance / rated value | 4 kV |
| Indication of difference current (EF003424) | false |
| starting current / limited to 2 s / maximum | 3 600 A |
| type of connectable conductor cross-sections | 0.13 mm²2.1 mm² |
| ● at AC / at 50 Hz / rated value / maximum | 720 V |
| ● at AC / at 60 Hz / rated value / maximum | 720 V |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| protection class IP / at connection all terminals | IP20 |
| Max. permitted delay-on energization time (EF008189) | - |
| Number of contacts as change-over contact (EF008257) | - |
| Region Specific PriceGroup / Headquarter Price Group | 13B / 1BE |
| internal diameter / of summation current transformer | 210 mm |
| Min. adjustable delay-on energization time (EF008190) | - |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Number of contacts as normally open contact (EF008256) | - |
| Number of contacts as normally closed contact (EF008255) | - |
| type of voltage / of the operating voltage / for actuation | AC |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2008 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
TRANSFORMER CURRENT ADDER 210MM. Cancelations and returns limited. Consult conditions.
