5SV8701-2KP

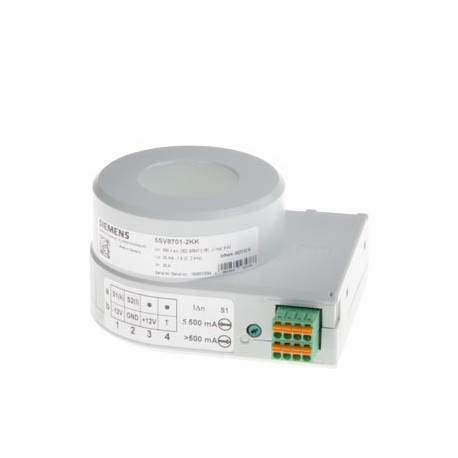

5SV8701-2KP SIEMENS Summation current transformer type B, 35 mm, 30 mA 1A, with metal shielding
$0.00USD
4302 in stock
Key Specifications
:
EAN:4001869533162
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869533162 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| depth | 79.2 mm |
| width | 99.5 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 55 mm |
| Group Code | P310 |
| net weight | 350 g |
| ● maximum | 690 V |
| ● minimum | 0 Hz |
| Confirmation | |
| Date5/5/2022 | |
| Metal Factor | None |
| Product Group | 5509 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 90309000 |
| Product family | SENTRON 5SV8 Residual Current Monitors |
| reference code | |
| Net Weight (kg) | 0,423 Kg |
| Depth (EF000049) | 79.2 |
| Width (EF000008) | 99.5 |
| Country of origin | Germany |
| Height (EF000040) | 55.0 |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Function (EF000030) | - |
| Packaging Dimension | 120,00 x 160,00 x 80,00 |
| Product Description | Summation current transformer type B, 35 mm, 30 mA 1A, with metal shielding |
| product designation | summation current transformer |
| design of the product | Type B |
| wire length / maximum | 10 m |
| control supply voltage | |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF003977) | ['-', '690'] |
| Export Control Regulations | AL : N / ECCN : N |
| Rated frequency (EF001663) | - |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| ● according to EN 61346-2 | T |
| Package size unit of measure | MM |
| ● according to IEC 81346-2 | T |
| type of electrical connection | Plug-in terminal |
| operating voltage / rated value | |
| product function / error memory | No |
| residual current (Idn) / minimum | 10 mA |
| With detachable clamps (EF003340) | - |
| operating frequency / rated value | |
| operational current / rated value | 80 A |
| Response value amperage 1 (EF008204) | - |
| Response value amperage 2 (EF008205) | - |
| apparent power consumption / maximum | 2.5 VA |
| Article Number (Market Facing Number) | 5SV8701-2KP |
| Voltage type for actuating (EF008242) | - |
| Error registration possible (EF003423) | - |
| Type of electric connection (EF003961) | Plug-in connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| surge voltage resistance / rated value | 8 kV |
| Indication of difference current (EF003424) | - |
| starting current / limited to 2 s / maximum | 500 A |
| type of connectable conductor cross-sections | 6 x 0.75 mm² |
| ● at AC / at 50 Hz / rated value / maximum | 690 V |
| ● at AC / at 60 Hz / rated value / maximum | 690 V |
| symmetrical tolerance of supply voltage / at DC | 12 V |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| protection class IP / at connection all terminals | IP20 |
| Max. permitted delay-on energization time (EF008189) | - |
| Number of contacts as change-over contact (EF008257) | - |
| Region Specific PriceGroup / Headquarter Price Group | 13B / 1BE |
| internal diameter / of summation current transformer | 35 mm |
| Min. adjustable delay-on energization time (EF008190) | - |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Number of contacts as normally open contact (EF008256) | - |
| Number of contacts as normally closed contact (EF008255) | - |
| type of voltage / of the operating voltage / for actuation | AC/DC |
| Compliance with the substance restrictions according to RoHS directive | Since: 06.02.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneous | General Product Approval |
