5SV6016-6KK13

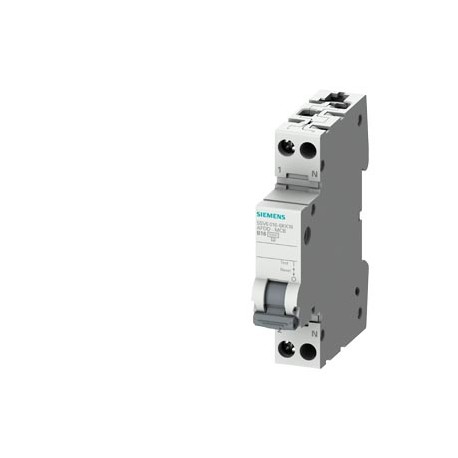

5SV6016-6KK13 SIEMENS AFDD-MCB-Combination 230V, 6kA, 2pole, B, 13A Compact (1MW)
$0.00USD
4546 in stock
Key Specifications
:
EAN:4001869564982
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869564982 |
| UPC | Not available |
| ETIM | 5 |
| depth | 68.5 mm |
| width | 18 mm |
| eClass | 7.1 |
| height | 90 mm |
| Group Code | P310 |
| net weight | 150 g |
| ● maximum | 16 mm² |
| ● minimum | 0.75 mm² |
| Confirmation | |
| Date5/3/2022 | |
| Metal Factor | L-A----- |
| Miscellaneous | |
| Product Group | 5546 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | Ordering Data Overview |
| design of pole | 1P+N |
| supply voltage | |
| Net Weight (kg) | 0,135 Kg |
| number of poles | 2 |
| product feature | |
| fastening method | DIN rail (REG) |
| tripping current | |
| ● halogen-free | Yes |
| ● silicon-free | Yes |
| Country of origin | China |
| mounting position | any |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | SENTRON |
| Packaging Dimension | 80,00 x 100,00 x 44,00 |
| Product Description | AFDD-MCB-Combination 230V, 6kA, 1+N, B, 13A Compact (1MW) |
| degree of pollution | 2 |
| protection class IP | IP20, with connected protective device and conductors |
| overvoltage category | III |
| design of the product | Compact unit |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AC / rated value | 230 V |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| switching capacity current | |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| number of modular width units | 1 |
| tripping characteristic class | B |
| position / of power supply cord | any |
| ambient temperature / during storage | |
| Article Number (Market Facing Number) | 5SV6016-6KK13 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| switching function / short-term delayed | No |
| operational current / at AC / rated value | 13 A |
| ● according to EN 60898-1 / rated value | 6 000 A |
| type of voltage / of the operating voltage | AC |
| ● according to IEC 60947-2 / rated value | 6 000 A |
| connectable conductor cross-section / solid | |
| tightening torque / with screw-type terminals | |
| value range / of the supply voltage frequency | 50Hz |
| connectable conductor cross-section / stranded | |
| ambient temperature / with relative humidity 95% | 55 °C |
| Region Specific PriceGroup / Headquarter Price Group | 13E / 1BA |
| mechanical service life (switching cycles) / typical | 10 000 |
| size of installation devices / according to DIN 43880 | 1 |
| product extension / installable / supplementary devices | Yes |
| touch protection against electrical shock / according to EN 50274 | finger and back-of-hand safe |
| ● in the event of electrical arcs in series with the load / maximum | 13 A |
| ● in the event of electrical arcs in series with the load / minimum | 2 A |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2018 |
| ● in the event of electrical arcs in parallel with the load / maximum | 500 A |
| ● in the event of electrical arcs in parallel with the load / minimum | 50 A |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| number of test cycles / for environmental testing / according to IEC 60068-2-30 | 28 |
| connectable conductor cross-section / finely stranded / with core end processing | |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.47 W |
| General Product ApprovalDeclaration of ConformityTest CertificatesConfirmationUK Declaration of ConformityMiscellaneousotherMiscellaneous | General Product Approval |
Product Description
Comb. int.aut. arc detector 230 V, 6 kA, 2 poles, B, 13 A compact (1 mod.)
