In Stock Hot Product
5SV5314-0FB

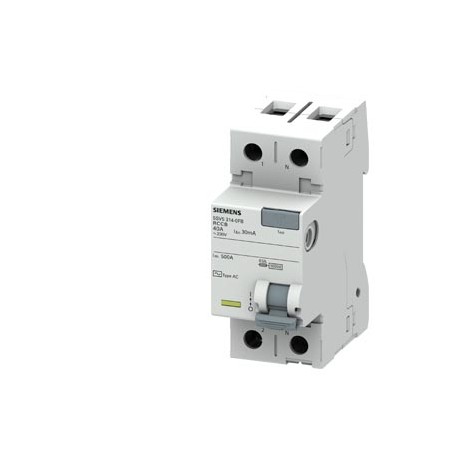

5SV5314-0FB SIEMENS Residual current operated circuit breaker, 2-pole, Type AC, In: 40 A, 30 mA, Un AC: 230 ..
$0.00USD
4429 in stock
Key Specifications
:Value
Frequency (EF005455):50 Hz
Rated current (EF000227):40
Rated voltage (EF000228):230
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| Frequency (EF005455) | 50 Hz |
| Rated current (EF000227) | 40 |
| Rated voltage (EF000228) | 230 |
| Built-in depth (EF000218) | 70.0 |
| Mounting method (EF000003) | DIN rail |
| Number of poles (EF001391) | 2 |
| Pollution degree (EF002570) | - |
| Rated fault current (EF002358) | 0.03 |
| Leakage current type (EF002560) | AC |
| Selective protection (EF002561) | false |
| Surge current capacity (EF002564) | - |
| With interlocking device (EF007385) | true |
| Degree of protection (IP) (EF005474) | IP20 |
| Rated insulation voltage Ui (EF001366) | - |
| Short-time delayed tripping (EF003604) | false |
| Additional equipment possible (EF008148) | false |
| Width in number of modular spacings (EF002950) | 2 |
| Ambient temperature during operating (EF007515) | ['-25', '45'] |
| Rated impulse withstand voltage Uimp (EF011980) | - |
| Short-circuit breaking capacity (Icw) (EF002562) | 10.0 |
| Connectable conductor cross section solid-core (EF007337) | ['0.75', '35.0'] |
| Connectable conductor cross section multi-wired (EF007343) | ['0.75', '35.0'] |
Product Description
DIFFERENTIAL SWITCH TYPE AC 40A 1+N POL. 30MA 230V 2MOD. GRAY HOUSING. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
