5SV4414-0

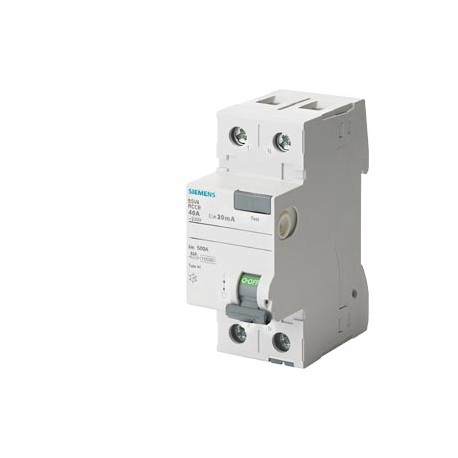

5SV4414-0 SIEMENS Residual current operated circuit breaker, 2-pole, Type AC, In: 40 A, 100 mA, Un AC: 230 V
$0.00USD
4563 in stock
Key Specifications
:Value
EAN:4001869429823
UPC:Not available
Depth:70 mm
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4001869429823 |
| UPC | Not available |
| Depth | 70 mm |
| Width | 36 mm |
| Height | 90 mm |
| Group Code | P310 |
| net weight | 197 g |
| Price Group | 194 |
| ● maximum | 35 mm² |
| ● minimum | 0.75 mm² |
| Metal Factor | L-A----- |
| Mounting type | DIN rail (REG) |
| Product Group | 5510 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | Not available |
| Supply voltage | |
| Net Weight (kg) | 0,185 Kg |
| number of poles | 2 |
| Country of origin | Germany |
| Operating current | |
| mounting position | any |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | SENTRON |
| Ambient temperature | |
| Operating frequency | 50 Hz |
| Packaging Dimension | 97,00 x 42,00 x 85,00 |
| Product Description | Residual current operated circuit breaker, 2-pole, Type AC, In: 40 A, 100 mA, Un AC: 230 V |
| Product designation | RCCB |
| Protection class IP | IP20, if the distribution board is installed, with connected conductors |
| Vibration and Shock | Confirmation |
| Frequency (EF005455) | 50 Hz |
| overvoltage category | III |
| Design of the product | Instantaneous |
| Type of fault current | AC |
| number of width units | 2 |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AC / rated value | 230/400 V |
| ● maximum permissible | 75 °C |
| ● minimum permissible | -40 °C |
| General Product Approval | EMC |
| Rated current (EF000227) | 40 |
| Rated voltage (EF000228) | 230 |
| Built-in depth (EF000218) | 70.0 |
| Export Control Regulations | ECCN : N / AL : N |
| Mounting method (EF000003) | DIN rail |
| Number of poles (EF001391) | 2 |
| Switching capacity current | |
| Pollution degree (EF002570) | - |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 40 °C / rated value | 40 A |
| ● at 45 °C / rated value | 38.1 A |
| ● at 50 °C / rated value | 35.59 A |
| ● at 55 °C / rated value | 32.29 A |
| ● at 60 °C / rated value | 28.19 A |
| ● at 65 °C / rated value | 23.3 A |
| ● at 70 °C / rated value | 17.62 A |
| Package size unit of measure | MM |
| Short-circuit current rating | 10 kA |
| ● power loss [W] / maximum | 3.2 W |
| Product Dimensions (W x L x H) | Not available |
| Rated fault current (EF002358) | 0.1 |
| product feature / silicon-free | Yes |
| Leakage current type (EF002560) | AC |
| Position / of power supply cord | top or bottom |
| Selective protection (EF002561) | false |
| Surge current capacity (EF002564) | - |
| ● acc. to EN 60898 / rated value | 0.5 kA |
| Protection against electrical shock | Finger and back-of-hand safe |
| With interlocking device (EF007385) | true |
| ● for testing equipment / minimum | 100 V |
| Ambient temperature / during storage | |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 5SV4414-0 |
| Rated insulation voltage Ui (EF001366) | - |
| Short-time delayed tripping (EF003604) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Operating current / at AC / rated value | 40 A |
| Switching function / short-term delayed | No |
| Tripping residual current / rated value | 100 mA |
| Additional equipment possible (EF008148) | true |
| ● Supply voltage frequency / rated value | 50 Hz |
| ● according to IEC 61008-1 / rated value | 0.5 kA |
| connectable conductor cross-section / solid | |
| ● Reference code / acc. to DIN EN 81346-2 | F |
| ● reference code / acc. to DIN EN 61346-2 | F |
| Tightening torque / with screw-type terminals | |
| Connectable conductor cross-section / stranded | |
| Width in number of modular spacings (EF002950) | 2 |
| Ambient temperature during operating (EF007515) | ['-25', '45'] |
| Rated impulse withstand voltage Uimp (EF011980) | - |
| Short-circuit breaking capacity (Icw) (EF002562) | 10.0 |
| Size of installation devices / acc. to DIN 43880 | 1 |
| Mechanical service life (switching cycles) / typical | 10 000 |
| Connectable conductor cross section solid-core (EF007337) | ['0.75', '35.0'] |
| Connectable conductor cross section multi-wired (EF007343) | ['0.75', '35.0'] |
| Product extension / can be installed / supplementary devices | Yes |
| Short-circuit current / of series fuse / maximum permissible | 63 A |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 28 |
| ● Power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.6 W |
| General Product ApprovalEMCDeclaration of ConformityotherMiscellaneousMiscellaneousRailwayVibration and ShockConfirmation | General Product Approval |
Product Description
Differential switch 5SV, 70mm, AC class, 2 poles, 40A, 100mA
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
