5SV3846-8

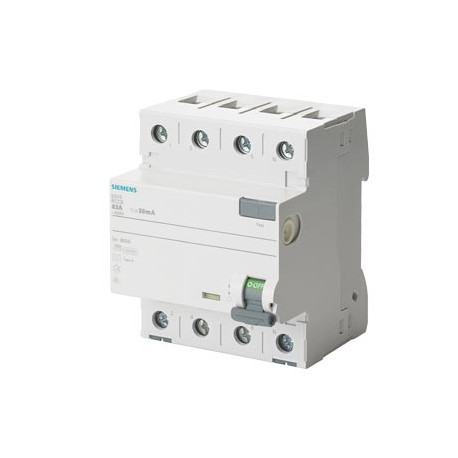

5SV3846-8 SIEMENS Residual current operated circuit breaker, 4-pole, type A, selective, In: 63 A, 1000 mA, U..
$0.00USD
3862 in stock
Key Specifications
:VersionClassificationeClass627-14-22-01eClass7.127-14-22-01eClass827-14-22-01eClass927-14-22-01eClass9.127-14-22-01ETIM5EC000003ETIM6EC000003ETIM7EC000003ETIM8EC000003UNSPSC1439-12-16-01UNSPSC1539-12-16-01
EAN:4001869430782
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-14-22-01eClass7.127-14-22-01eClass827-14-22-01eClass927-14-22-01eClass9.127-14-22-01ETIM5EC000003ETIM6EC000003ETIM7EC000003ETIM8EC000003UNSPSC1439-12-16-01UNSPSC1539-12-16-01 | |
| EAN | 4001869430782 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| Metal Factor | L-A----- |
| Product Group | 5511 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | RCCBs |
| Net Weight (kg) | 0,378 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| Packaging Dimension | 97,00 x 78,00 x 85,00 |
| Product Description | Residual current operated circuit breaker, 4-pole, type A, selective, In: 63 A, 1000 mA, Un AC: 400 V |
| Frequency (EF005455) | 50 Hz |
| Product Lifecycle (PLM) | PM300:Active Product |
| Rated current (EF000227) | 63 |
| Rated voltage (EF000228) | 400 |
| Built-in depth (EF000218) | 70.0 |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Mounting method (EF000003) | DIN rail |
| Number of poles (EF001391) | 4 |
| Pollution degree (EF002570) | - |
| Standard lead time ex-works | 70 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Rated fault current (EF002358) | 1.0 |
| Leakage current type (EF002560) | A |
| Selective protection (EF002561) | true |
| Surge current capacity (EF002564) | 5.0 |
| With interlocking device (EF007385) | true |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 5SV3846-8 |
| Rated insulation voltage Ui (EF001366) | - |
| Short-time delayed tripping (EF003604) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Additional equipment possible (EF008148) | true |
| Width in number of modular spacings (EF002950) | 4 |
| Ambient temperature during operating (EF007515) | ['-25', '45'] |
| Rated impulse withstand voltage Uimp (EF011980) | - |
| Short-circuit breaking capacity (Icw) (EF002562) | 10.0 |
| Region Specific PriceGroup / Headquarter Price Group | 11C / 1AH |
| Connectable conductor cross section solid-core (EF007337) | ['0.75', '35.0'] |
| Connectable conductor cross section multi-wired (EF007343) | ['0.75', '35.0'] |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Silicic acid, lead s... CAS-No. 11120-22-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Silicic acid, lead saltBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.2-methyl-1-(4-methyl... CAS-No. 71868-10-5 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-oneBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
DIFFERENTIAL SWITCH TYPE A 63A 3+N POL. 1000MA 400V 4MOD. SELECTIVE. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
