5SV3444-6LA01

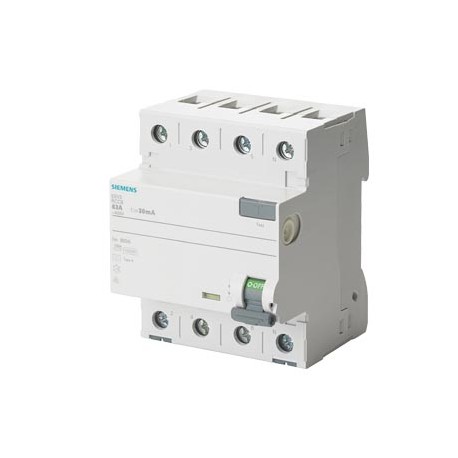

5SV3444-6LA01 SIEMENS Residual current operated circuit breaker, 4-pole, Type A, short-time delayed, In: 40 ..
$0.00USD
3435 in stock
Key Specifications
:
EAN:4001869462479
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869462479 |
| UPC | Not available |
| ETIM | 5 |
| depth | 70 mm |
| width | 72 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 90 mm |
| Group Code | P310 |
| ● maximum | 5.4 W |
| ● minimum | 0.75 mm² |
| Confirmation | |
| Metal Factor | L-A----- |
| Date5/18/2022 | |
| Product Group | 5511 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | RCCBs |
| power loss [W] | |
| Net Weight (kg) | 0,377 Kg |
| number of poles | 4 |
| fastening method | DIN rail (REG) |
| Country of origin | Germany |
| mounting position | any |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | SENTRON |
| product variations | With thermal overload protection |
| Packaging Dimension | 97,00 x 78,00 x 85,00 |
| Product Description | Residual current operated circuit breaker, 4-pole, Type A, short-time delayed, In: 40 A, 100 mA, Un AC: 400 V, with thermal overload protection |
| operational current | |
| product designation | RCCB |
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
| overvoltage category | III |
| design of the product | Short-time delayed |
| residual current type | A |
| I2t value / permissible | 58 000 A²·s |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AC / rated value | 40 A |
| ● maximum permissible | 75 °C |
| ● minimum permissible | -40 °C |
| General Product Approval | Declaration of Conformity |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| switching capacity current | |
| Standard lead time ex-works | 70 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 40 °C / rated value | 40 A |
| ● at 45 °C / rated value | 40 A |
| ● at 50 °C / rated value | 40 A |
| ● at 55 °C / rated value | 40 A |
| ● at 60 °C / rated value | 40 A |
| ● at 65 °C / rated value | 40 A |
| ● at 70 °C / rated value | 40 A |
| Package size unit of measure | MM |
| UK Declaration of Conformity | Miscellaneous |
| short-circuit current rating | 10 kA |
| number of modular width units | 4 |
| product feature / silicon-free | Yes |
| position / of power supply cord | top or bottom |
| let-through current / permissible | 5 200 A |
| ambient temperature / during storage | |
| tripping fault current / rated value | 100 mA |
| Article Number (Market Facing Number) | 5SV3444-6LA01 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| surge current resistance / rated value | 3 kA |
| switching function / short-term delayed | Yes |
| value range / of the operating frequency | 50/60 Hz |
| ● according to IEC 61008-1 / rated value | 0.8 kA |
| connectable conductor cross-section / solid | |
| value range / of the supply voltage / at AC | 230/400 V |
| tightening torque / with screw-type terminals | |
| value range / of the supply voltage frequency | 50 Hz |
| connectable conductor cross-section / stranded | |
| supply voltage / for testing equipment / minimum | 100 V |
| Region Specific PriceGroup / Headquarter Price Group | 11C / 1AH |
| mechanical service life (switching cycles) / typical | 10 000 |
| size of installation devices / according to DIN 43880 | 1 |
| product extension / installable / supplementary devices | Yes |
| short-circuit current / of series fuse / maximum permissible | 100 A |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Silicic acid, lead s... CAS-No. 11120-22-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Silicic acid, lead saltBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.2-methyl-1-(4-methyl... CAS-No. 71868-10-5 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-oneBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| ● for rated value of the current / at AC / in hot operating state / per pole | 1.8 W |
| number of test cycles / for environmental testing / according to IEC 60068-2-30 | 28 |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousDeclaration of ConformityTest CertificatesotherRailwayDangerous GoodUK Declaration of ConformityMiscellaneousMiscellaneousVibration and ShockConfirmationTransport Information | General Product Approval |
Product Description
differential switch, 4 poles, Type A, with short delay, Input: 40 A, 100 mA, One AC: 400 V, with protection against thermal overloads. Cancelations and returns limited. Consult conditions.
