5SV3342-4

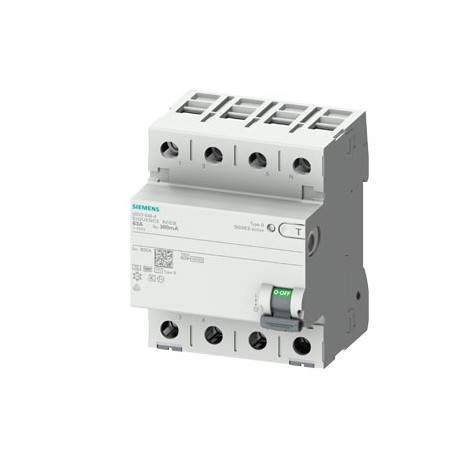

5SV3342-4 SIEMENS Residual current operated circuit breaker, 4-pole, Type B, short-time delayed, In: 25 A, 3..
$0.00USD
3759 in stock
Key Specifications
:
EAN:4001869549026
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869549026 |
| UPC | Not available |
| ETIM | 5 |
| depth | 70 mm |
| width | 72 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 90 mm |
| Group Code | P310 |
| net weight | 571 g |
| ● maximum | 3.6 W |
| ● minimum | 0.75 mm² |
| Confirmation | |
| Metal Factor | L-A----- |
| Date5/17/2022 | |
| Product Group | 5513 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | RCCBs |
| power loss [W] | |
| Net Weight (kg) | 0,450 Kg |
| number of poles | 4 |
| fastening method | DIN rail (REG) |
| Country of origin | Germany |
| mounting position | any |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | SENTRON |
| Packaging Dimension | 97,00 x 78,00 x 85,00 |
| Product Description | Residual current operated circuit breaker, 4-pole, Type B, short-time delayed, In: 25 A, 30 mA, Un AC: 400 V |
| operational current | |
| product designation | RCCB |
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
| Frequency (EF005455) | 50 Hz |
| overvoltage category | III |
| Transport Information | |
| design of the product | Short-time delayed |
| residual current type | B |
| I2t value / permissible | 41 000 A²·s |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AC / rated value | 25 A |
| ● maximum permissible | 75 °C |
| ● minimum permissible | -40 °C |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 25 |
| Rated voltage (EF000228) | 400 |
| Built-in depth (EF000218) | 70.0 |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail |
| Number of poles (EF001391) | 4 |
| switching capacity current | |
| Pollution degree (EF002570) | - |
| Standard lead time ex-works | 40 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 40 °C / rated value | 25 A |
| ● at 45 °C / rated value | 25 A |
| ● at 50 °C / rated value | 25 A |
| ● at 55 °C / rated value | 25 A |
| ● at 60 °C / rated value | 25 A |
| ● at 65 °C / rated value | 25 A |
| ● at 70 °C / rated value | 25 A |
| Package size unit of measure | MM |
| UK Declaration of Conformity | Miscellaneous |
| short-circuit current rating | 10 kA |
| number of modular width units | 4 |
| Rated fault current (EF002358) | 0.03 |
| product feature / silicon-free | Yes |
| Leakage current type (EF002560) | B |
| Selective protection (EF002561) | false |
| Surge current capacity (EF002564) | 3.0 |
| let-through current / permissible | 6 200 A |
| With interlocking device (EF007385) | true |
| Degree of protection (IP) (EF005474) | IP20 |
| ambient temperature / during storage | |
| tripping fault current / rated value | 30 mA |
| Article Number (Market Facing Number) | 5SV3342-4 |
| Rated insulation voltage Ui (EF001366) | - |
| Short-time delayed tripping (EF003604) | true |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| surge current resistance / rated value | 3 kA |
| switching function / short-term delayed | Yes |
| Additional equipment possible (EF008148) | true |
| value range / of the operating frequency | 50/60 Hz |
| ● according to IEC 61008-1 / rated value | 0.8 kA |
| connectable conductor cross-section / solid | |
| tightening torque / with screw-type terminals | |
| Width in number of modular spacings (EF002950) | 4 |
| connectable conductor cross-section / stranded | |
| Ambient temperature during operating (EF007515) | ['-25', '45'] |
| Rated impulse withstand voltage Uimp (EF011980) | - |
| Short-circuit breaking capacity (Icw) (EF002562) | 10.0 |
| supply voltage / for testing equipment / minimum | 70 V |
| Region Specific PriceGroup / Headquarter Price Group | 13A / 1AJ |
| mechanical service life (switching cycles) / typical | 10 000 |
| size of installation devices / according to DIN 43880 | 1 |
| product extension / installable / supplementary devices | Yes |
| Connectable conductor cross section solid-core (EF007337) | ['1.5', '25.0'] |
| Connectable conductor cross section multi-wired (EF007343) | ['1.5', '25.0'] |
| short-circuit current / of series fuse / maximum permissible | 100 A |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2018 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| ● for rated value of the current / at AC / in hot operating state / per pole | 1.2 W |
| number of test cycles / for environmental testing / according to IEC 60068-2-30 | 28 |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousMiscellaneousDeclaration of ConformityTest CertificatesotherRailwayUK Declaration of ConformityMiscellaneousConfirmationMiscellaneousVibration and ShockConfirmationDangerous GoodTransport Information | General Product Approval |
