5SU1354-7GV10

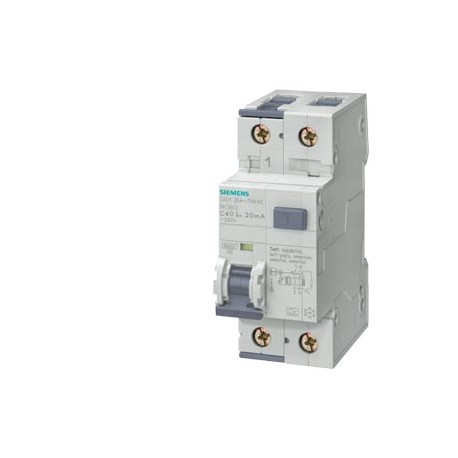

5SU1354-7GV10 SIEMENS RCBO, Icn: 10 kA, 1P+N, type A, 30 mA, C-Char, In: 10 A, Un AC: 230 V, bulk packaging
$0.00USD
3129 in stock
Key Specifications
:
EAN:4001869528915
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869528915 |
| UPC | Not available |
| ETIM | 5 |
| depth | 77 mm |
| width | 36 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 90 mm |
| Group Code | P310 |
| net weight | 274 g |
| ● maximum | 35 mm² |
| ● minimum | 0.75 mm² |
| Confirmation | Miscellaneous |
| Metal Factor | None |
| Date5/15/2022 | |
| Product Group | 5516 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | RCBOs |
| power loss [W] | |
| reference code | |
| supply voltage | |
| Net Weight (kg) | 0,278 Kg |
| number of poles | 2 |
| product feature | |
| ● halogen-free | Yes |
| ● silicon-free | Yes |
| Country of origin | Romania |
| mounting position | any |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | SENTRON |
| Packaging Dimension | 40,00 x 96,00 x 82,00 |
| Product Description | RCBO, Icn: 10 kA, 1P+N, type A, 30 mA, C-Char, In: 10 A, Un AC: 230 V, bulk packaging |
| degree of pollution | 2 |
| operating frequency | 50 Hz |
| operational current | |
| product designation | RCBO |
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
| overvoltage category | III |
| design of the product | Instantaneous |
| residual current type | A |
| Minimum order quantity | 36 |
| Product Lifecycle (PLM) | PM300:Active Product |
| energy limitation class | 3 |
| weight / with packaging | 278 g |
| ● at AC / rated value | 230/240 V |
| General Product Approval | other |
| Export Control Regulations | AL : N / ECCN : N |
| switching capacity current | |
| Standard lead time ex-works | 40 Day/Days |
| Surcharge for Raw Materials | None |
| ● according to EN 61346-2 | F |
| ● at 30 °C / rated value | 10 A |
| ● at 40 °C / rated value | 9.5 A |
| ● at 45 °C / rated value | 9.3 A |
| ● at 50 °C / rated value | 9 A |
| ● at 55 °C / rated value | 8.7 A |
| ● at 60 °C / rated value | 8.5 A |
| ● at 65 °C / rated value | 8.2 A |
| ● at 70 °C / rated value | 8 A |
| Package size unit of measure | MM |
| ● according to IEC 81346-2 | F |
| number of modular width units | 2 |
| tripping characteristic class | C |
| position / of power supply cord | Either top or bottom |
| number of poles / with protection | 1 |
| product feature / touch protection | Yes |
| ● for testing equipment / minimum | 195 V |
| ambient temperature / during storage | |
| tripping fault current / rated value | 30 mA |
| Article Number (Market Facing Number) | 5SU1354-7GV10 |
| insulation voltage (Ui) / rated value | 264 V |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| supply voltage frequency / rated value | 50 Hz |
| surge voltage resistance / rated value | 4 000 V |
| ● according to EN 60898 / rated value | 10 kA |
| influence of the surrounding temperature | Max. 95% humidity |
| surge current resistance / at (8/20) µs | 1 kA |
| type of voltage / of the operating voltage | AC |
| ● according to IEC 60947-2 / rated value | 20 kA |
| connectable conductor cross-section / solid | |
| tightening torque / with screw-type terminals | |
| connectable conductor cross-section / stranded | |
| product component / neutral conductor switching | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 11D / 1BC |
| mechanical service life (switching cycles) / typical | 10 000 |
| rated residual switching capacity (IΔm) / according to IEC 61009-1 | 10 kA |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| ● for rated value of the current / at AC / in hot operating state / per pole | 1.6 W |
| number of test cycles / for environmental testing / according to IEC 60068-2-30 | 28 |
| connectable conductor cross-section / finely stranded / with core end processing | |
| breaking capacity short-circuit current (Icn) / according to EN 61009-1 / rated value | 10 kA |
| General Product ApprovalotherDangerous GoodConfirmationMiscellaneousMiscellaneousMiscellaneousTransport Information | General Product Approval |
Product Description
FI/LS switches, Icn: 10 kA, 1 P+N, Type A, 30 mA, C-curve, Input: 10 A, One AC: 230 V, multi-unit packaging. Cancelations and returns limited. Consult conditions.
