5ST3765-2

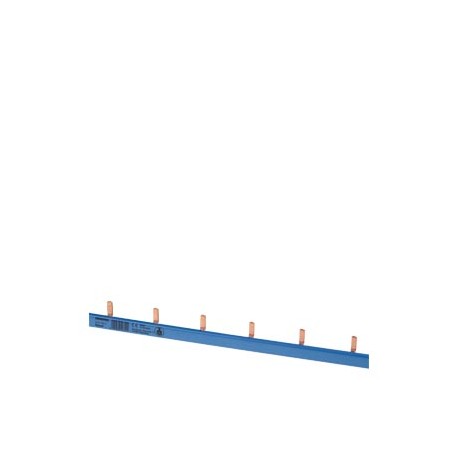

5ST3765-2 SIEMENS Pin busbar 1PH 10 mm2, 54TE blue Pin busbar, 1 phase straight 10qmm,54TE, Insulation blue ..
$0.00USD
4197 in stock
Key Specifications
:VersionClassificationeClass627-37-13-06eClass7.127-37-13-06eClass827-37-13-06eClass927-37-13-06eClass9.127-37-13-06ETIM5EC000215ETIM6EC000215ETIM7EC000215ETIM8EC000215
EAN:4001869547510
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-13-06eClass7.127-37-13-06eClass827-37-13-06eClass927-37-13-06eClass9.127-37-13-06ETIM5EC000215ETIM6EC000215ETIM7EC000215ETIM8EC000215 | |
| EAN | 4001869547510 |
| UPC | Not available |
| ETIM | 5 |
| eClass | 6 |
| Group Code | P310 |
| Metal Factor | None |
| Product Group | 5506 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369001 |
| Product family | 5ST Busbars for Modular Installation Devices |
| Net Weight (kg) | 0,138 Kg |
| Model (EF000010) | Laminated |
| Width (EF000008) | 10.5 |
| Country of origin | Germany |
| Height (EF000040) | 4.5 |
| Length (EF001438) | 1000.0 |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| Flexible (EF000083) | false |
| Packaging Dimension | 60,00 x 1050,00 x 60,00 |
| Product Description | Pin busbar 1PH 10 mm2, 54TE blue Pin busbar, 1 phase straight 10qmm,54TE, Insulation blue Can be cut for AFDD 5SM601.-2 Pin spacing 2 MW |
| Minimum order quantity | 10 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : N |
| Rated current In (EF008250) | 63.0 |
| Standard lead time ex-works | 3 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Surface protection (EF000139) | - |
| Article Number (Market Facing Number) | 5ST3765-2 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 12E / 1AD |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
Mud pin 1 phase 10. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
